IKO CR28VB

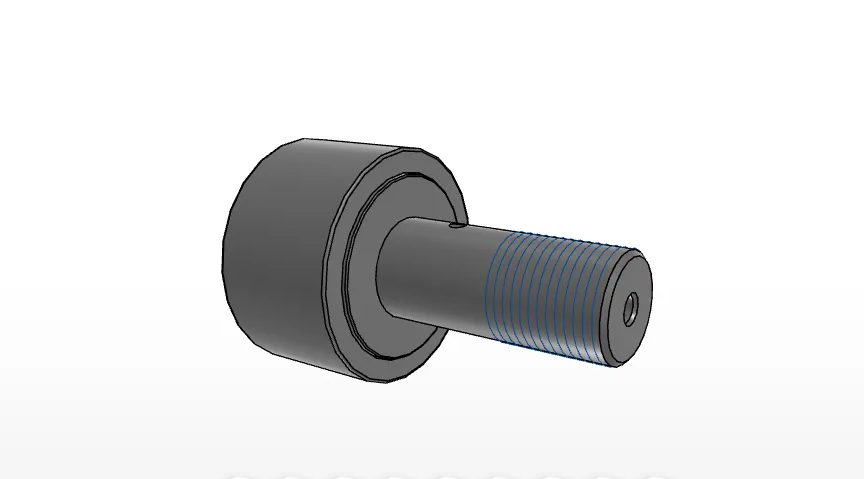

IKO CR28VB Cam Follower Overview

The IKO CR28VB is part of the Cam Followers product series and uses a standard inch-series design. The supplied data identifies it as a full complement, high carbon steel cam follower with a cylindrical outer ring, shielded construction, and a hex head.

What are the basic identifying details?

• Model: CR28VB
• Brand: IKO
• Series: Cam Followers
• Bearing type: Cam Followers
• Internal structure: Full Complement
• Material: High Carbon Steel

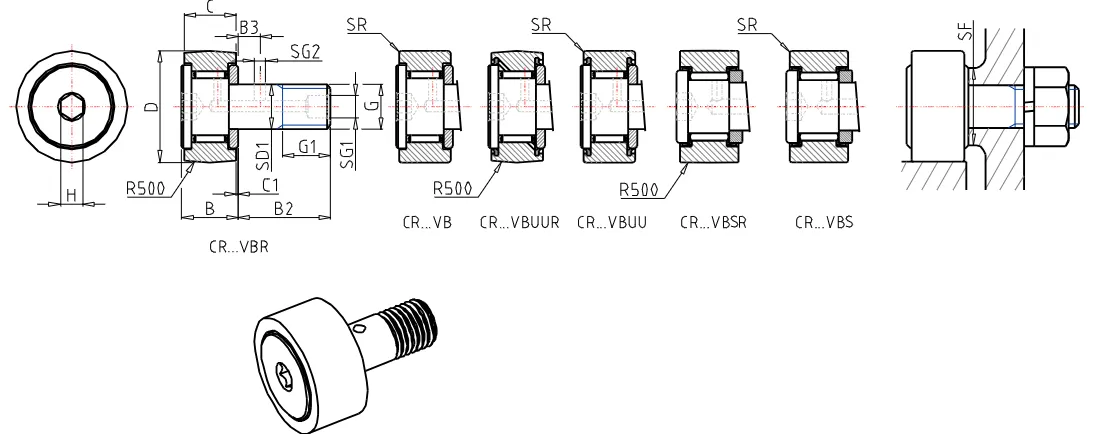

CR28VB Dimensions and Stud Details

The CR28VB has a stud diameter of 19.050 mm, an outer diameter of 44.450 mm, and a width of 25.400 mm. The listed thread size is 3/4-16, with additional dimensions and installation-related values provided in the product data.

What dimensions are recorded for this cam follower?

• Stud diameter: 19.050 mm
• Outer diameter: 44.450 mm
• Width: 25.400 mm
• Thread: 3/4-16
• Thread length: 22.225 mm
• Maximum width: 26.8 mm
• Overall length: 44.450 mm
• Dimension: 11.112 mm
• Dimension: 0.794 mm
• Diameter: 4.762 mm
• Diameter: 3.969 mm
• Dimension: 7.938 mm
• rs min.: 1.588 mm
• Minimum installation-related dimension: 32.543 mm

Load, Torque, and Mass Specifications

The product data lists a basic dynamic load rating of 35300 N and a basic static load rating of 55600 N for the CR28VB. It also records a maximum tightening torque of 100.0 Nm and a mass of 372 g.

What performance-related values are supplied?

1. Basic dynamic load rating: 35300 N
2. Basic static load rating: 55600 N
3. Maximum tightening torque: 100.0 Nm
4. Mass: 372 g
