IKO CR30
Standard Inch Series Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Screw Driver Slot,

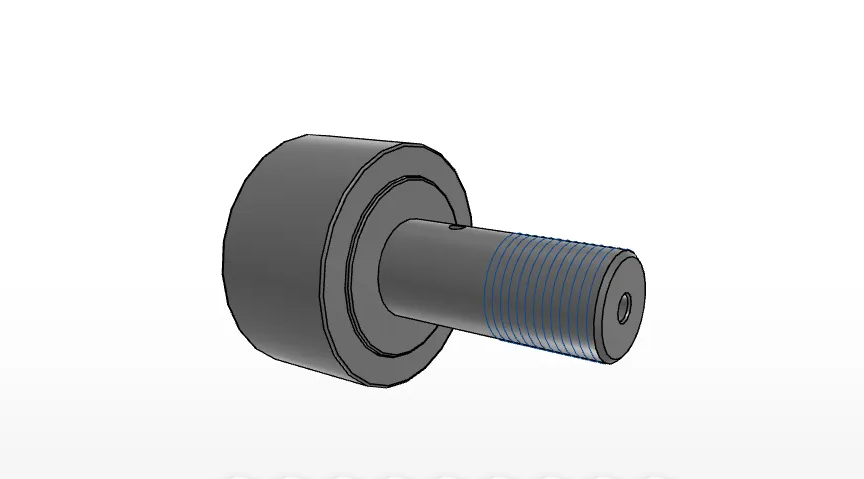

The IKO CR30 Is a Standard Inch Series Cam Follower
The IKO CR30 is part of the IKO Cam Followers product series. It is designed as a standard inch series cam follower with a caged internal structure, cylindrical outer ring, shielded arrangement, and screw driver slot. The bearing material is listed as high carbon steel.
What is the IKO CR30?
The CR30 is an IKO cam follower identified by order number CR30. Its supplied product data lists the bearing type as cam followers and the internal structure as cage type.

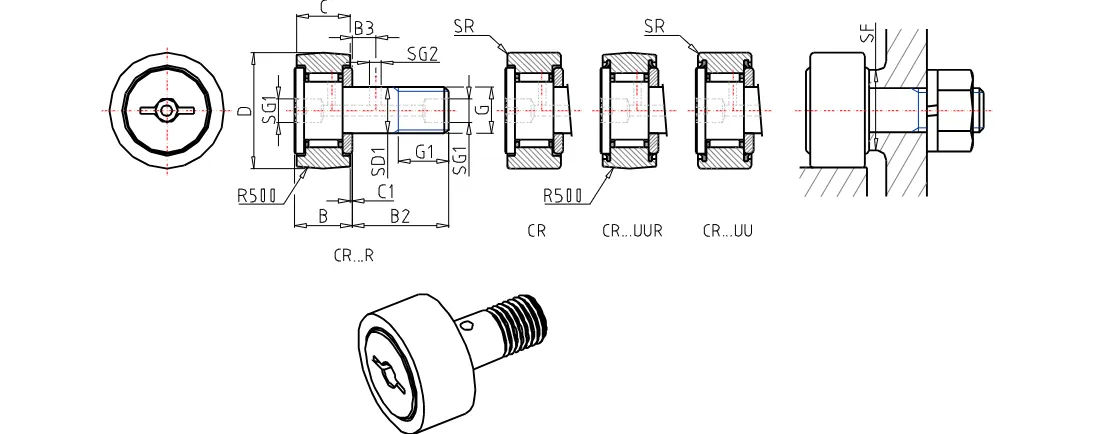

The CR30 Provides the Supplied Installation and Body Dimensions
The CR30 has a stud diameter of 19.050 mm, an outer diameter of 47.625 mm, and a width of 25.400 mm. Additional supplied dimensions include a 3/4-16 thread, 22.225 mm thread length, 26.8 mm maximum width, and 44.450 mm overall length.
What dimensions should be reviewed before installation?
- Minimum installation-related dimension: 32.543 mm
- rs minimum: 1.588 mm
- Supplied dimensions: 11.112 mm, 0.794 mm, 4.762 mm, and 3.969 mm
- Maximum tightening torque: 100.0 Nm
Published Load and Mass Data Support Product Identification
The supplied product data lists a basic dynamic load rating of 25100 N and a basic static load rating of 38200 N for the IKO CR30. The listed mass is 410 g.
How can the CR30 be identified from the supplied data?
- Confirm the brand and model: IKO CR30.
- Review the series and category: Cam Followers.
- Match the main dimensions: 19.050 mm stud diameter, 47.625 mm outer diameter, and 25.400 mm width.
- Check the listed features: high carbon steel, caged structure, cylindrical outer ring, shielded design, and screw driver slot.
