IKO CR30B
Standard Inch Series Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
The IKO CR30B Is a Standard Inch Series Cam Follower
What are the basic identification details for the CR30B?
The IKO CR30B is part of the IKO Cam Followers product series and is classified under Brand > IKO > Cam Followers. The product data identifies it as a standard inch series cam follower with a caged internal structure and a cylindrical outer ring.
- Model: CR30B
- Brand: IKO
- Series: Cam Followers
- Bearing type: Cam followers
- Internal structure: Cage type
The CR30B Uses High Carbon Steel with a Shielded, Hex Head Design
What construction and material information is provided?
The supplied data lists the bearing material as high carbon steel. The cam follower also has a shielded configuration and a hex head. The outer ring is described as cylindrical, and the internal design uses a cage rather than a full-complement structure.
- Material: High carbon steel
- Outer ring form: Cylindrical outer ring
- Closure: Shielded
- Head type: Hex head
- Internal design: Caged

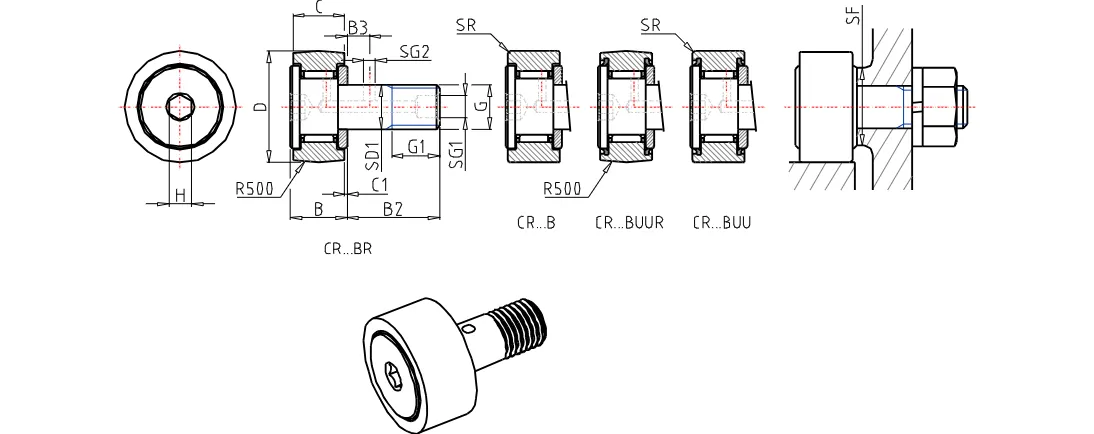

The CR30B Has Documented Dimensions and Load Ratings
What dimensions and performance values are listed?
The product data records a stud diameter of 19.050 mm, outer diameter of 47.625 mm, width of 25.400 mm, thread of 3/4-16, and mass of 410 g. It also lists a basic dynamic load rating of 25100 N, basic static load rating of 38200 N, and maximum tightening torque of 100.0 Nm.
- Stud diameter: 19.050 mm
- Outer diameter: 47.625 mm
- Width: 25.400 mm
- Maximum width: 26.8 mm
- Thread: 3/4-16
- Length values: 22.225 mm and 44.45 mm
- Dynamic load rating: 25100 N
- Static load rating: 38200 N
- Maximum tightening torque: 100.0 Nm
