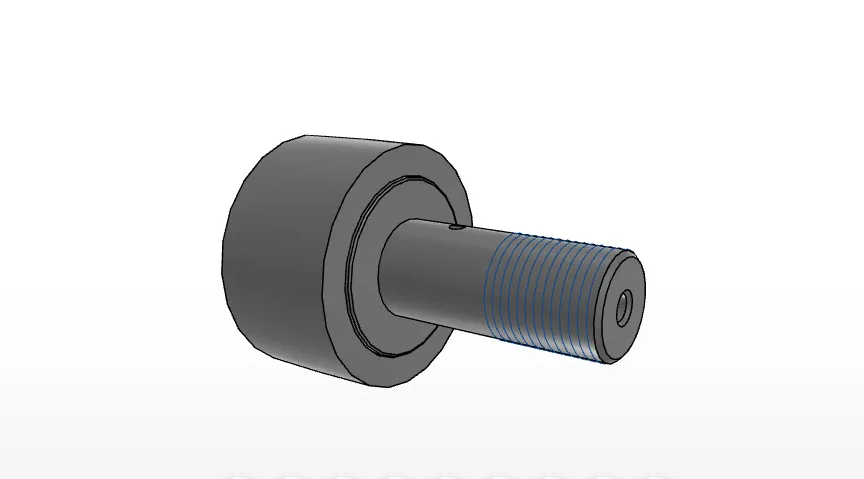

IKO CR30BR
Standard Inch Series Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CR30BR
Stud Diameter
19.050
mm
Outer Diameter
47.625
mm
Width
25.400
mm
Stud Diameter
19.050
mm
Thread
3/4-16
Length
22.225
mm
Maximum width
26.8
mm
Length
44.45
mm
Dimension
11.112
mm
Dimension
0.794
mm
Diameter
4.762
mm
Diameter
3.969
mm
Dimension
7.938
mm
rs min.
-
mm
Min.Dimension related to the installation
32.543
mm
Maximum tightening torque
100.0
Nm
Basic dynamic load rating
25100
N
Basic static load rating
38200
N
Mass
410
g
IKO CR30BR Cam Follower Specifications
The IKO CR30BR is part of the IKO Cam Followers product series and uses a standard inch-series configuration. The listed bearing type is Cam Follower, with a cage-type internal structure and high carbon steel bearing material.
What are the main dimensions of the CR30BR?
- Stud diameter: 19.050 mm
- Outer diameter: 47.625 mm
- Width: 25.400 mm
- Thread: 3/4-16
- Thread length: 22.225 mm
- Overall length: 44.45 mm
- Maximum width: 26.8 mm
- Mass: 410 g
CR30BR Design and Load Data
The supplied product data identifies the CR30BR as a caged, shielded cam follower with a crowned outer ring and a hex head. It includes basic load-rating values and a maximum tightening-torque value for reference during installation.
What load and torque values are provided for the CR30BR?
- Basic dynamic load rating: 25,100 N
- Basic static load rating: 38,200 N
- Maximum tightening torque: 100.0 Nm
- Minimum installation-related dimension: 32.543 mm
IKO CR30BR Product Identification
The CR30BR is classified under Brand > IKO > Cam Followers. The product description records its standard inch series, caged structure, high carbon steel material, crowned outer ring, shielded arrangement, and hex-head design.

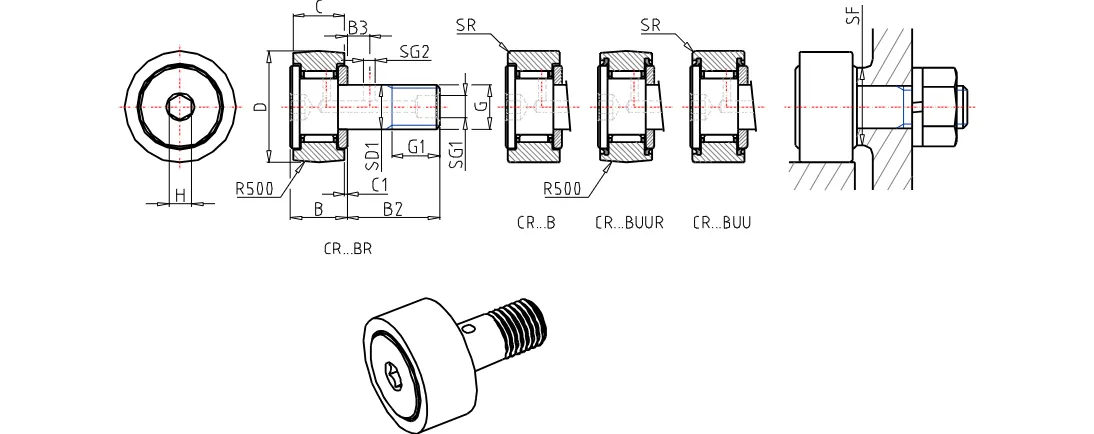

What additional dimensional details are listed for this cam follower?
- Dimension: 11.112 mm
- Dimension: 0.794 mm
- Diameter: 4.762 mm
- Diameter: 3.969 mm
- Dimension: 7.938 mm
