IKO CR30UU
Standard Inch Series Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Sealed, Screw Driver Slot,
CR30UU IKO Cam Follower Overview

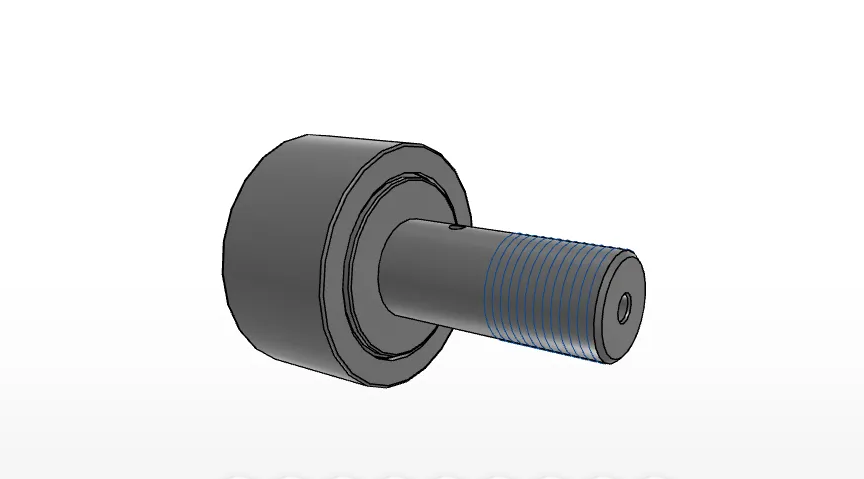

The CR30UU is an IKO cam follower in the Standard Inch Series. It uses a caged internal structure, a cylindrical outer ring, a screw driver slot, and a sealed arrangement. The listed bearing material is high carbon steel.
What type of bearing is the CR30UU?
The supplied product data identifies the CR30UU as a Cam Follower under the IKO Cam Followers product series and category path.

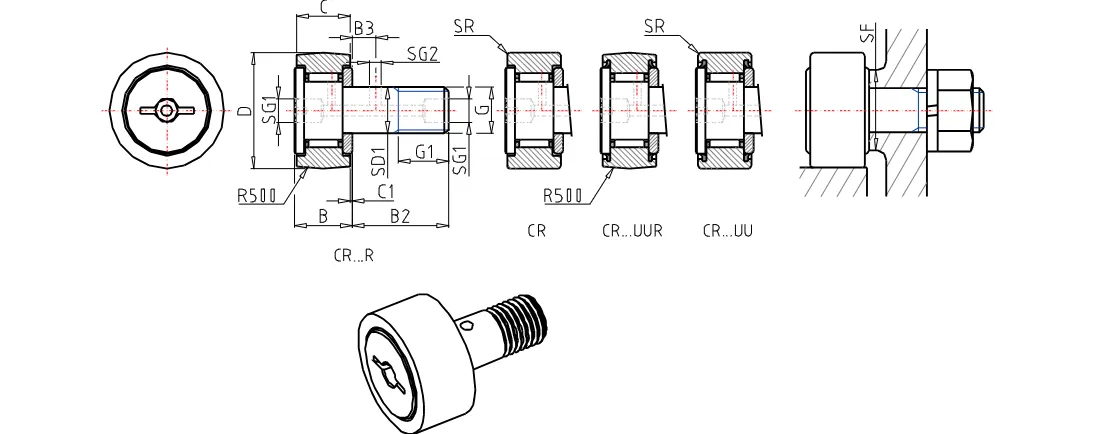

CR30UU Dimensions and Construction Details
The CR30UU has a stud diameter of 19.050 mm, an outer diameter of 47.625 mm, and a width of 25.400 mm. Additional supplied dimensions include:
- Thread: 3/4-16
- Length: 22.225 mm and 44.450 mm, as listed in the product data
- Maximum width: 26.8 mm
- Dimensions: 11.112 mm and 0.794 mm
- Diameters: 4.762 mm and 3.969 mm
- rs minimum: 1.588 mm
- Minimum installation-related dimension: 32.543 mm
What material and structure are specified?
The data lists high carbon steel as the bearing material and cage type as the internal structure. The product description also identifies a cylindrical outer ring, seal, and screw driver slot.
CR30UU Load, Torque, and Mass Data
The supplied technical data lists a basic dynamic load rating of 25,100 N, a basic static load rating of 38,200 N, and a maximum tightening torque of 100.0 Nm. The listed mass is 410 g.
What ratings are provided for the CR30UU?
The CR30UU is listed with a basic dynamic load rating of 25,100 N, a basic static load rating of 38,200 N, and a maximum tightening torque of 100.0 Nm. These values should be used according to the supplied product data.
