IKO CR30VB

IKO CR30VB Standard Inch Series Cam Follower

What is the CR30VB?

The CR30VB is an IKO cam follower in the Cam Followers product series. It is described as a standard inch series cam follower with a full complement internal structure, high carbon steel construction, cylindrical outer ring, shielded arrangement, and hex head.

• Brand: IKO
• Model: CR30VB
• Bearing type: Cam Followers
• Internal structure: Full Complement
• Material: High Carbon Steel
• Outer ring form: Cylindrical Outer Ring
• Configuration: Shielded, Hex Head

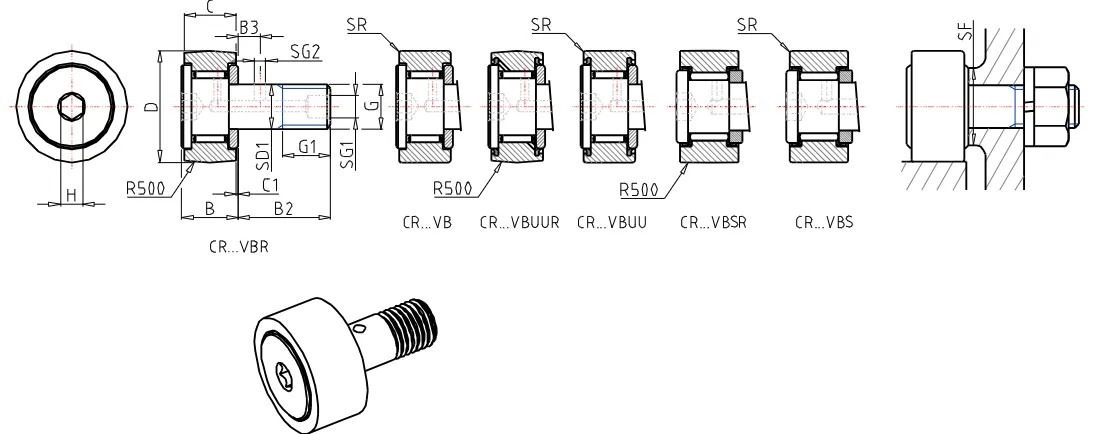

CR30VB Dimensions and Installation Data

What dimensions are provided for the CR30VB?

The supplied product data lists the following measurements for the CR30VB:

• Stud diameter: 19.050 mm
• Outer diameter: 47.625 mm
• Width: 25.400 mm
• Thread: 3/4-16
• Thread length: 22.225 mm
• Maximum width: 26.8 mm
• Length: 44.450 mm
• Dimension: 11.112 mm
• Dimension: 0.794 mm
• Diameter: 4.762 mm
• Diameter: 3.969 mm
• Dimension: 7.938 mm
• rs min.: 1.588 mm
• Minimum installation-related dimension: 32.543 mm
• Maximum tightening torque: 100.0 Nm

CR30VB Load Ratings and Mass

What load and mass details are supplied?

The CR30VB data includes basic load ratings and mass. These values can be compared with the requirements of the intended installation.

1. Basic dynamic load rating: 35300 N
2. Basic static load rating: 55600 N
3. Mass: 418 g

All specifications shown here are limited to the supplied CR30VB product data.
