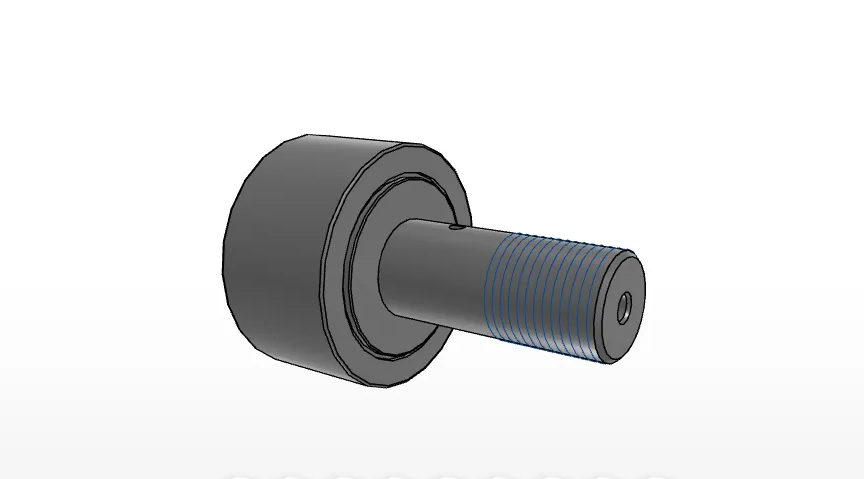

IKO CR30VBS
Inch Series Cam Followers, Full complement, High Carbon Steel, Cylindrical, Sealed with integrated thrust washer, Hex Head
IKO CR30VBS Cam Follower Specifications
The IKO CR30VBS is an inch-series cam follower in the Cam Followers product series. It features a full-complement internal structure, high carbon steel bearing material, a cylindrical form, sealing, an integrated thrust washer, and a hex head.
What are the main dimensions of the CR30VBS?
- Stud diameter: 19.050 mm
- Outer diameter: 47.625 mm
- Width: 25.400 mm
- Thread: 3/4-16
- Length: 44.450 mm
- Maximum width: 26.8 mm
- Mass: 413 g
CR30VBS Load and Installation Data
The supplied product data lists basic load ratings and installation-related values for the IKO CR30VBS. The bearing has a basic dynamic load rating of 32200 N and a basic static load rating of 49500 N. The maximum tightening torque is listed as 100.0 Nm.

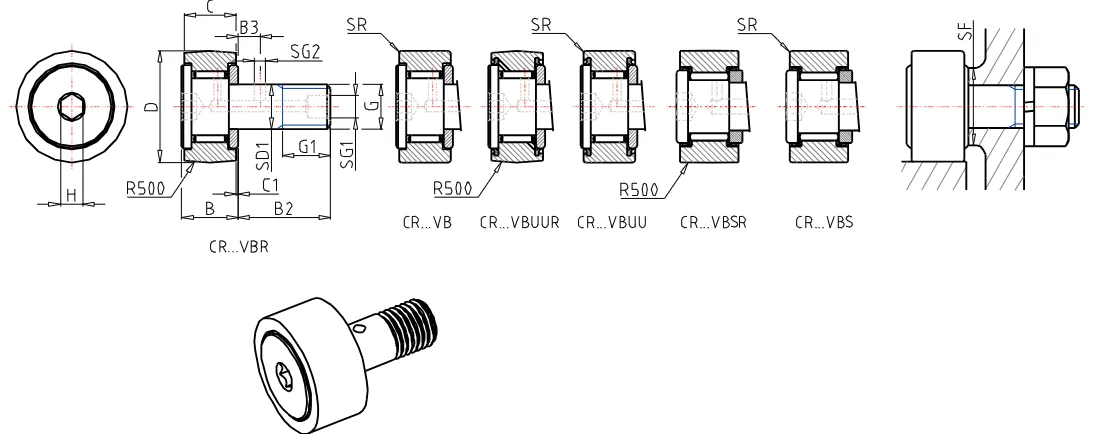

What installation dimensions are provided for this cam follower?
- Thread length: 22.225 mm
- Minimum installation-related dimension: 32.543 mm
- Dimension values: 11.112 mm and 0.794 mm
- Diameter values: 4.762 mm and 3.969 mm
- Additional dimension: 7.938 mm
- rs minimum: 1.588 mm
Full-Complement Sealed Cam Follower Construction
The CR30VBS is identified as a full-complement cam follower made with high carbon steel bearing material. Its stated configuration includes a sealed design with an integrated thrust washer and a hex head, supporting product identification within the IKO cam follower range.
What product details distinguish the CR30VBS configuration?
The model is categorized as an inch-series cam follower with a cylindrical form. The recorded material is high carbon steel, the internal structure is full complement, and the bearing is described as sealed with an integrated thrust washer and equipped with a hex head.
