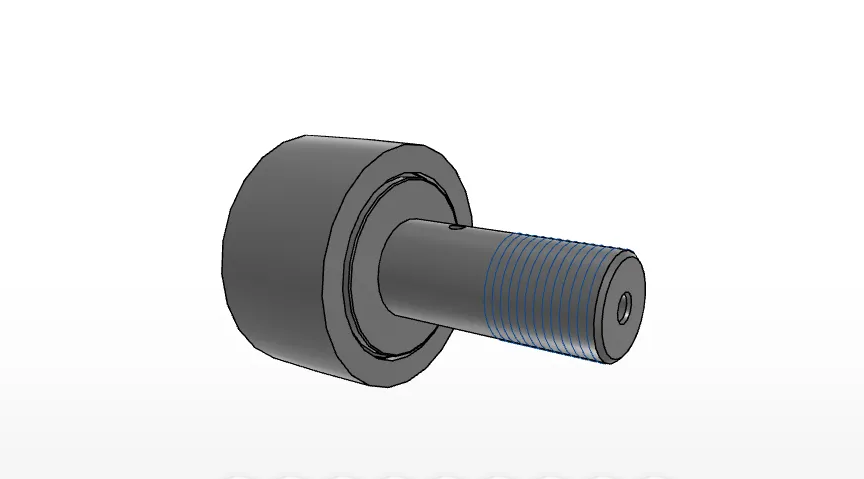

IKO CR30VBUUR
Standard Inch Series Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CR30VBUUR
Stud Diameter
19.050
mm
Outer Diameter
47.625
mm
Width
25.400
mm
Stud Diameter
19.050
mm
Thread
3/4-16
Length
22.225
mm
Maximum width
26.8
mm
Length
44.450
mm
Dimension
11.112
mm
Dimension
0.794
mm
Diameter
4.762
mm
Diameter
3.969
mm
Dimension
7.938
mm
rs min.
-
mm
Min.Dimension related to the installation
32.543
mm
Maximum tightening torque
100.0
Nm
Basic dynamic load rating
35300
N
Basic static load rating
55600
N
Mass
418
g
