IKO CR30VR
Standard Inch Series Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,

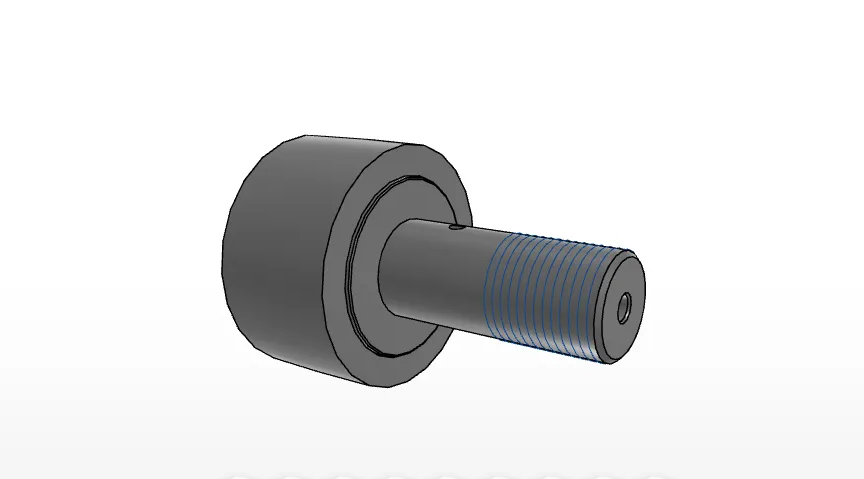

IKO CR30VR Cam Follower Overview
The IKO CR30VR is a Cam Followers product in the standard inch series. The supplied data identifies it as a full complement, shielded cam follower with a crowned outer ring and a screw driver slot.
What is the CR30VR?
The CR30VR is an IKO cam follower listed under Brand > IKO > Cam Followers. It is made from high carbon steel and uses a full complement internal structure.

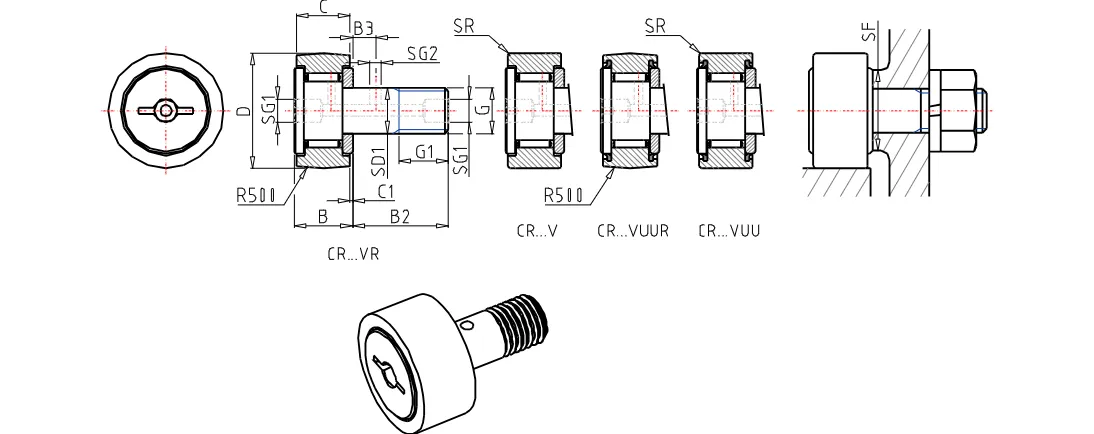

CR30VR Dimensions and Installation Data
- Stud diameter: 19.050 mm
- Outer diameter: 47.625 mm
- Width: 25.400 mm
- Maximum width: 26.8 mm
- Thread: 3/4-16
- Thread length: 22.225 mm
- Overall length: 44.450 mm
- Installation-related minimum dimension: 32.543 mm
- Maximum tightening torque: 100.0 Nm
- Mass: 418 g
What dimensions are supplied for selection?
The product data provides stud diameter, outer diameter, width, maximum width, thread specification, thread length, overall length, additional dimensions of 11.112 mm, 0.794 mm, 4.762 mm, and 3.969 mm, and the stated installation-related dimension. Use these values when checking compatibility with the intended arrangement.
CR30VR Load Ratings and Construction
The CR30VR combines a high carbon steel material designation with a full complement internal structure, crowned outer ring, shielding, and screw driver slot. The supplied basic load ratings are:
- Basic dynamic load rating: 35300 N
- Basic static load rating: 55600 N
What construction and load data are documented?
The documented construction includes high carbon steel, a full complement arrangement, a crowned outer ring, shielding, and a screw driver slot. The stated basic dynamic and static load ratings provide the load data available for this IKO CR30VR cam follower.
