IKO CR32
Standard Inch Series Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Screw Driver Slot,

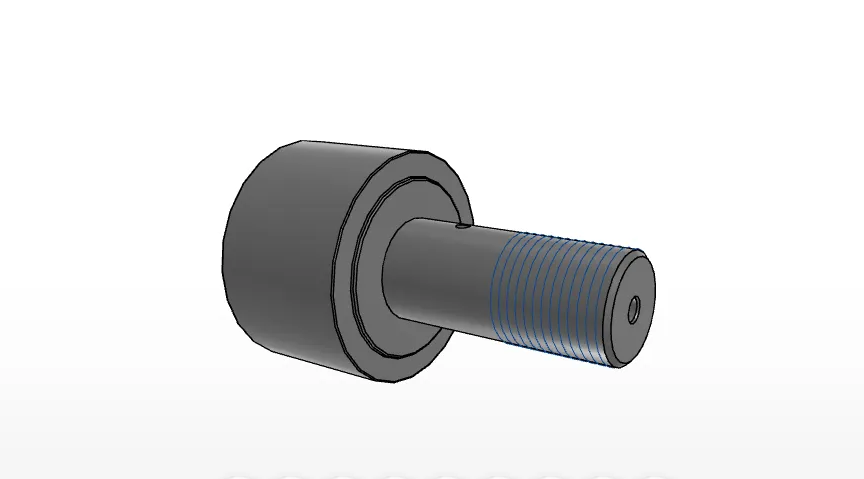

IKO CR32 Standard Inch Series Cam Follower
The IKO CR32 is part of the IKO Cam Followers product series. The supplied product data identifies it as a standard inch series cam follower with a caged internal structure, cylindrical outer ring, shielded arrangement, screw driver slot, and high carbon steel bearing material.
What is the CR32 designed as?
The CR32 is listed under Brand > IKO > Cam Followers and is described as a standard inch series, caged cam follower. Its recorded bearing material is high carbon steel, and its outer ring form is cylindrical.

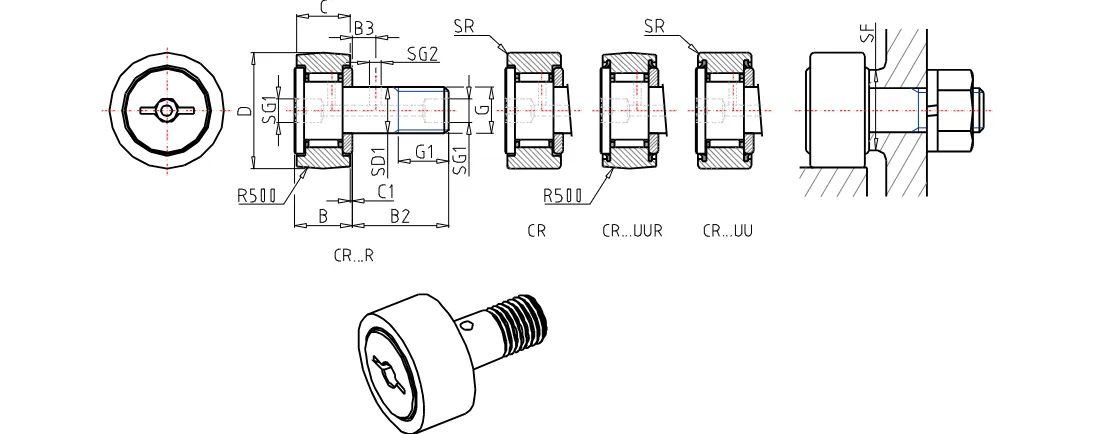

CR32 Dimensions and Installation Data
The CR32 has a stud diameter of 22.225 mm, an outer diameter of 50.800 mm, and a width of 31.750 mm. The thread size is 7/8-14, with a recorded thread length of 25.400 mm and overall length of 50.800 mm.
- Maximum width: 33.5 mm
- Dimension: 12.7 mm
- Dimension: 0.794 mm
- Diameter: 4.762 mm
- Diameter: 4.762 mm
- rs min.: 1.588 mm
- Minimum installation-related dimension: 37.306 mm
- Maximum tightening torque: 162.0 Nm
What measurements are specified for the CR32?
The supplied data specifies the main stud diameter, outer diameter, width, thread designation, thread length, overall length, maximum width, additional dimensions, diameters, corner radius, installation-related dimension, and maximum tightening torque.
CR32 Load Ratings and Mass
The IKO CR32 has a recorded basic dynamic load rating of 32500 N and a basic static load rating of 63900 N. Its listed mass is 615 g.
What load and mass information is available?
The product data provides a basic dynamic load rating of 32500 N, a basic static load rating of 63900 N, and a mass of 615 g. These values are stated from the supplied product information only.
