IKO CR32VBS

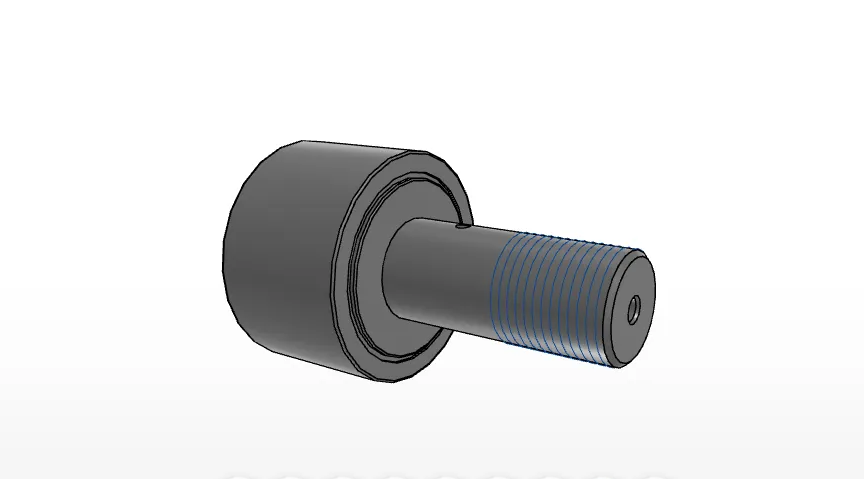

IKO CR32VBS Cam Follower Basic Identification

What type of bearing is the CR32VBS?

The IKO CR32VBS is listed in the Cam Followers product series under the IKO brand. Its inch-series design uses a cylindrical outer profile and a full complement internal structure.

• Model: CR32VBS
• Brand: IKO
• Bearing type: Cam Followers
• Series: Inch Series Cam Followers
• Internal structure: Full complement

CR32VBS Construction and Material Details

What construction features are specified for this cam follower?

The supplied product data identifies the CR32VBS as a high carbon steel, cylindrical cam follower. It is described as sealed with an integrated thrust washer and equipped with a hex head.

• Material: High carbon steel
• Outer shape: Cylindrical
• Closure arrangement: Sealed
• Included feature: Integrated thrust washer
• Head style: Hex head

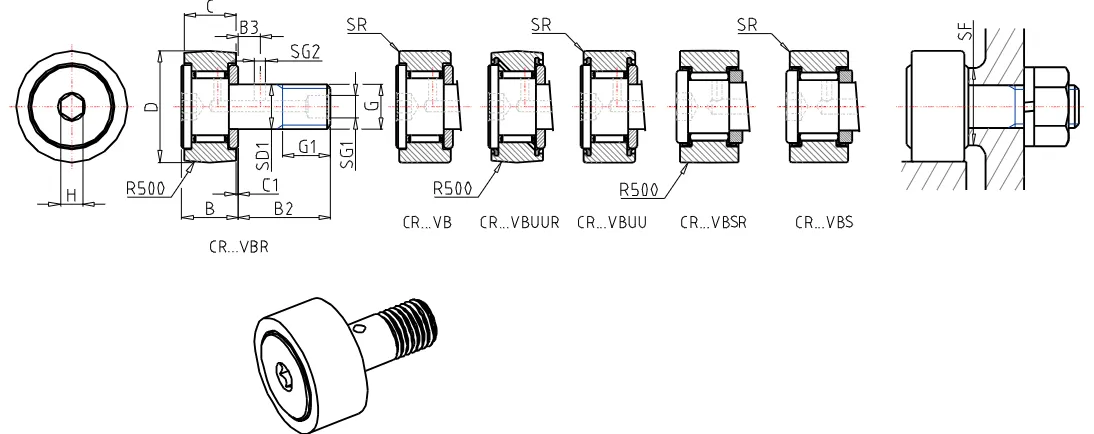

CR32VBS Dimensions and Load Data

What measured values and ratings are provided for the CR32VBS?

The available data lists the following dimensions, thread information, torque value, mass, and basic load ratings. These values should be checked against the installation requirements before selection.

1. Stud diameter: 22.225 mm
2. Outer diameter: 50.800 mm
3. Width: 31.750 mm
4. Thread: 7/8-14
5. Length values: 25.400 mm and 50.800 mm
6. Maximum width: 33.5 mm
7. Maximum tightening torque: 162.0 Nm
8. Basic dynamic load rating: 42600 N
9. Basic static load rating: 73700 N
10. Mass: 620 g
