IKO CR32VBUUR
Standard Inch Series Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CR32VBUUR
Stud Diameter
22.225
mm
Outer Diameter
50.800
mm
Width
31.750
mm
Stud Diameter
22.225
mm
Thread
7/8-14
Length
25.400
mm
Maximum width
33.5
mm
Length
50.800
mm
Dimension
12.7
mm
Dimension
0.794
mm
Diameter
4.762
mm
Diameter
4.762
mm
Dimension
11.112
mm
rs min.
-
mm
Min.Dimension related to the installation
37.306
mm
Maximum tightening torque
162.0
Nm
Basic dynamic load rating
45700
N
Basic static load rating
80600
N
Mass
627
g

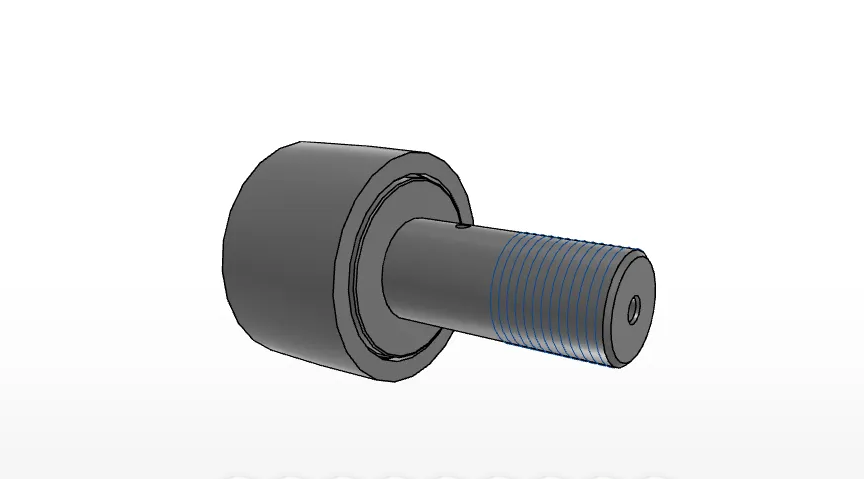

IKO CR32VBUUR Cam Follower Overview
What type and construction identify the CR32VBUUR?
The IKO CR32VBUUR is part of the Cam Followers product series and the Standard Inch Series. The supplied data identifies it as a full-complement, high carbon steel cam follower with a crowned outer ring, sealed design, and hex head.
- Brand: IKO
- Model: CR32VBUUR
- Bearing type: Cam Followers
- Internal structure: Full Complement
- Material: High Carbon Steel

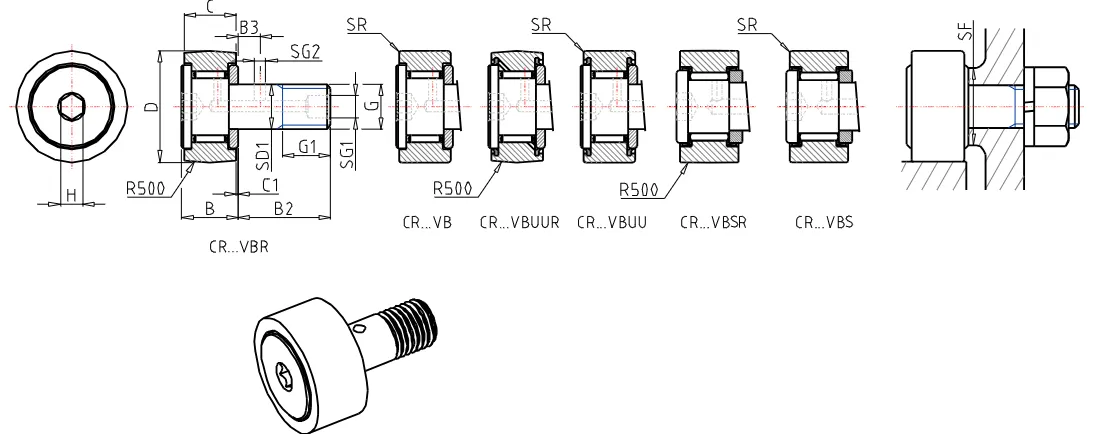

CR32VBUUR Dimensions and Thread Data
What dimensions are provided for the CR32VBUUR?
The listed measurements include a 22.225 mm stud diameter, 50.800 mm outer diameter, and 31.750 mm width. The thread is specified as 7/8-14, with a listed length of 25.400 mm and an overall length entry of 50.800 mm.
- Stud diameter: 22.225 mm
- Outer diameter: 50.800 mm
- Width: 31.750 mm
- Maximum width: 33.5 mm
- Thread: 7/8-14
CR32VBUUR Load, Torque, and Mass Specifications
What performance-related values are included in the product data?
The supplied product data lists a basic dynamic load rating of 45700 N, a basic static load rating of 80600 N, a maximum tightening torque of 162.0 Nm, and a mass of 627 g. Additional listed installation and component dimensions include 37.306 mm, 12.7 mm, 0.794 mm, 4.762 mm, and 11.112 mm entries.
- Basic dynamic load rating: 45700 N
- Basic static load rating: 80600 N
- Maximum tightening torque: 162.0 Nm
- Mass: 627 g
