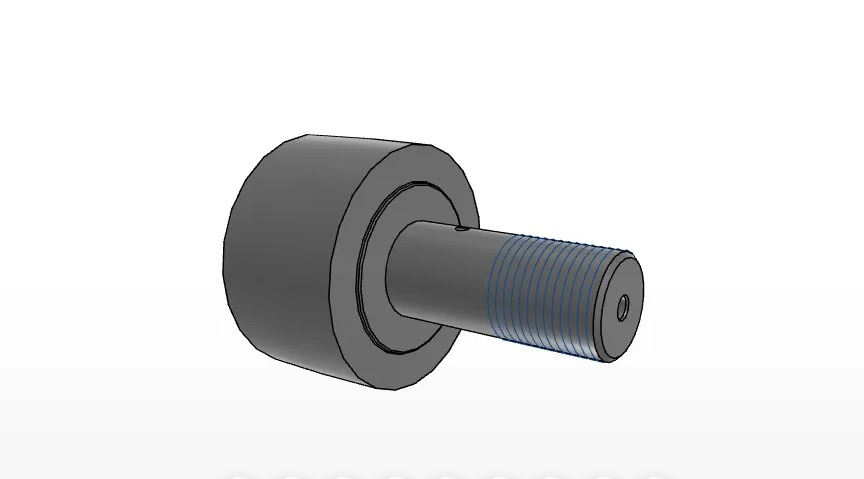

IKO CR36R
Standard Inch Series Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CR36R
Stud Diameter
22.225
mm
Outer Diameter
57.150
mm
Width
31.750
mm
Stud Diameter
22.225
mm
Thread
7/8-14
Length
25.400
mm
Maximum width
33.5
mm
Length
50.800
mm
Dimension
12.7
mm
Dimension
0.794
mm
Diameter
4.762
mm
Diameter
4.762
mm
rs min.
-
mm
Min.Dimension related to the installation
37.306
mm
Maximum tightening torque
162.0
Nm
Basic dynamic load rating
32500
N
Basic static load rating
63900
N
Mass
750
g
