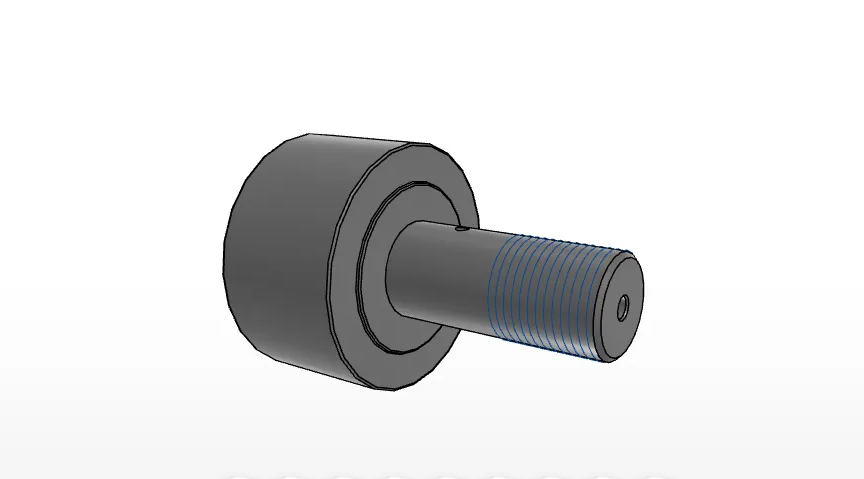

IKO CR36V
Standard Inch Series Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CR36V
Stud Diameter
22.225
mm
Outer Diameter
57.150
mm
Width
31.750
mm
Stud Diameter
22.225
mm
Thread
7/8-14
Length
25.400
mm
Maximum width
33.5
mm
Length
50.800
mm
Dimension
12.7
mm
Dimension
0.794
mm
Diameter
4.762
mm
Diameter
4.762
mm
rs min.
1.588
mm
Min.Dimension related to the installation
37.306
mm
Maximum tightening torque
162.0
Nm
Basic dynamic load rating
45700
N
Basic static load rating
80600
N
Mass
759
g
