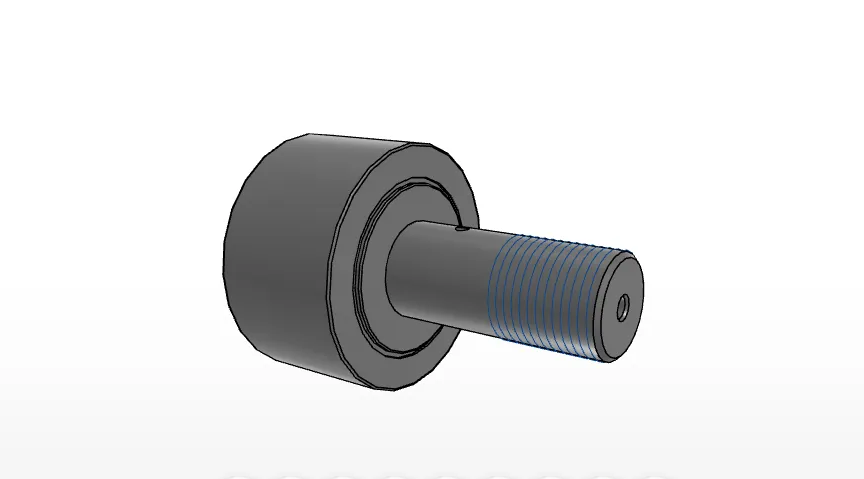

IKO CR36VBS
Inch Series Cam Followers, Full complement, High Carbon Steel, Cylindrical, Sealed with integrated thrust washer, Hex Head
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

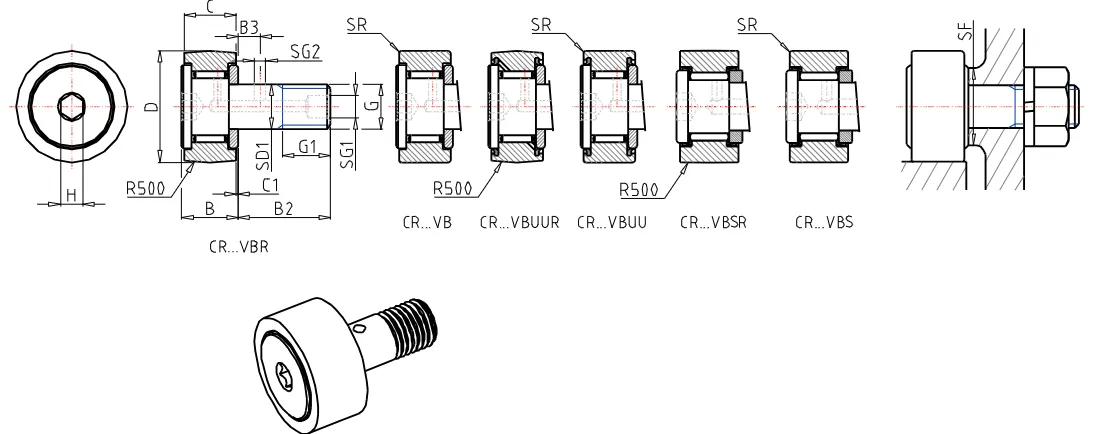

Order Number
CR36VBS
Stud Diameter
22.225
mm
Outer Diameter
57.150
mm
Width
31.750
mm
Stud Diameter
22.225
mm
Thread
7/8-14
Length
25.400
mm
Maximum width
33.5
mm
Length
50.800
mm
Dimension
12.7
mm
Dimension
0.794
mm
Diameter
4.762
mm
Diameter
4.762
mm
Dimension
11.112
mm
rs min.
1.588
mm
Min.Dimension related to the installation
37.306
mm
Maximum tightening torque
162.0
Nm
Basic dynamic load rating
42600
N
Basic static load rating
73700
N
Mass
753
g
