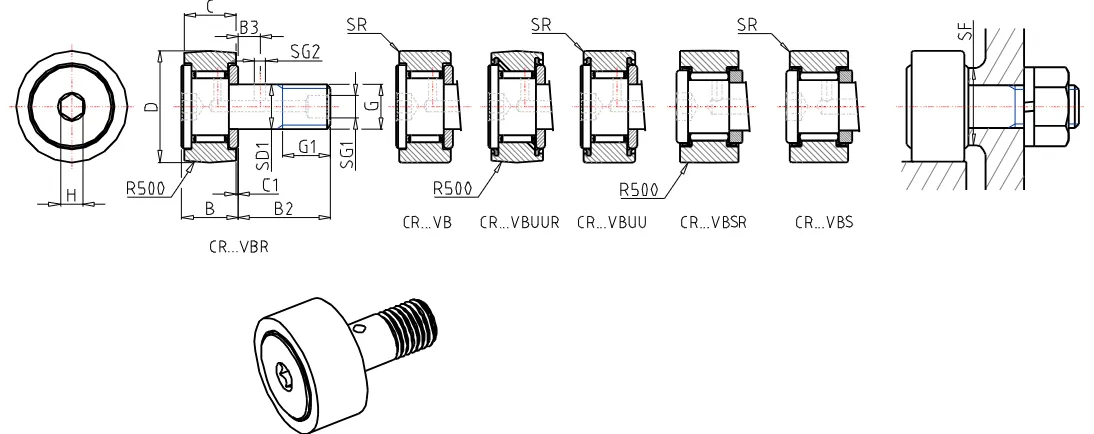

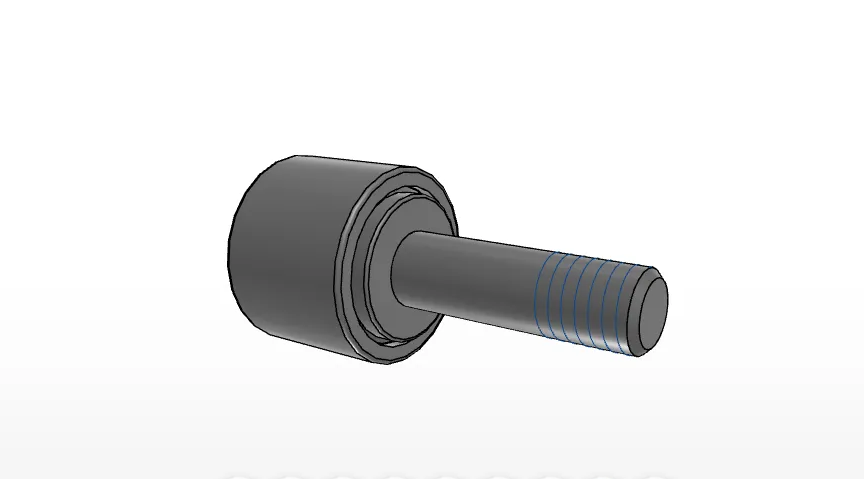

IKO CR81VBUU
Standard Inch Series Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Sealed, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CR8-1VBUU
Stud Diameter
4.826
mm
Outer Diameter
12.700
mm
Width
9.525
mm
Stud Diameter
4.826
mm
Thread
No.10-32
Length
6.350
mm
Maximum width
10.9
mm
Length
15.875
mm
Dimension
-
mm
Dimension
0.794
mm
Diameter
-
mm
Diameter
-
mm
Dimension
3.175
mm
rs min.
0.397
mm
Min.Dimension related to the installation
8.334
mm
Maximum tightening torque
1.4
Nm
Basic dynamic load rating
4710
N
Basic static load rating
5410
N
Mass
10
g
