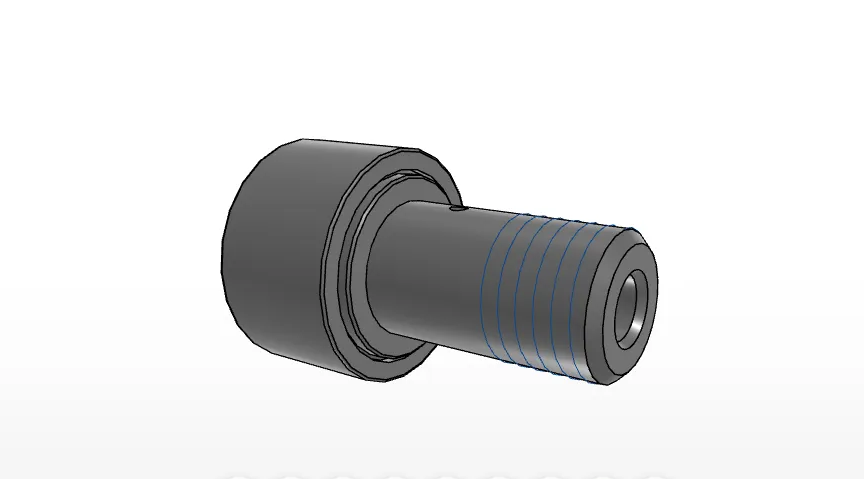

IKO CRH28VBUU
Heavy Duty Inch Series Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Sealed, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

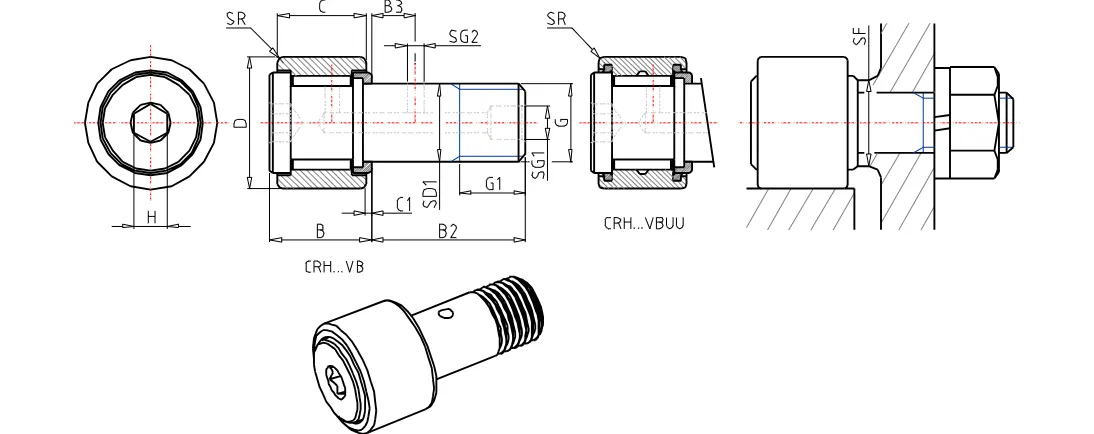

Order Number
CRH28VBUU
Stud Diameter
25.400
mm
Outer Diameter
44.450
mm
Width
25.400
mm
Stud Diameter
25.400
mm
Thread
1-14UNS
Length
22.225
mm
Maximum width
27.4
mm
Length
44.450
mm
Dimension
11.112
mm
Dimension
1.588
mm
Diameter
4.762
mm
Diameter
2.381
mm
Dimension
7.938
mm
Radius
0
mm
rs min.
1.588
mm
Min.Dimension related to the installation
32.941
mm
Maximum tightening torque
258.0
Nm
Basic dynamic load rating
35300
N
Basic static load rating
55600
N
Mass
463
g
