IKO CRH32VB

Heavy Duty Inch Series Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

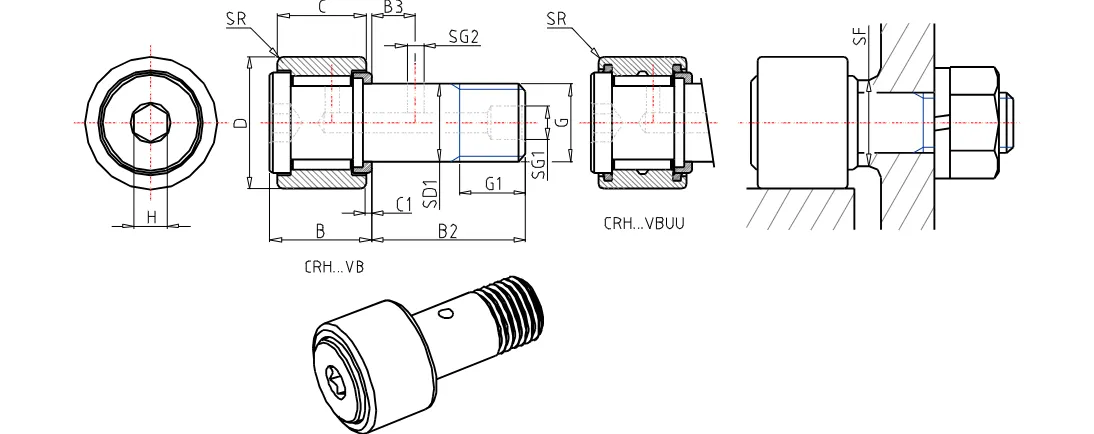

Detailed data of

CRH32VB

Order Number CRH32VB
Stud Diameter 28.575 mm
Outer Diameter 50.800 mm
Width 31.750 mm
Stud Diameter 28.575 mm
Thread 1-1/8-12 Length
25.400 mm
Maximum width 34.2 mm
Length 50.800 mm
Dimension 12.7 mm
Dimension 1.588 mm
Diameter 4.762 mm
Diameter 3.175 mm
Dimension 11.112 mm
Radius 0 mm
rs min. 1.588 mm
Min.Dimension related to the installation 37.306 mm
Maximum tightening torque 356.0 Nm
Basic dynamic load rating 45700 N
Basic static load rating 80600 N
Mass 722 g
