IKO CRH36VBUUR

Heavy Duty Inch Series Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

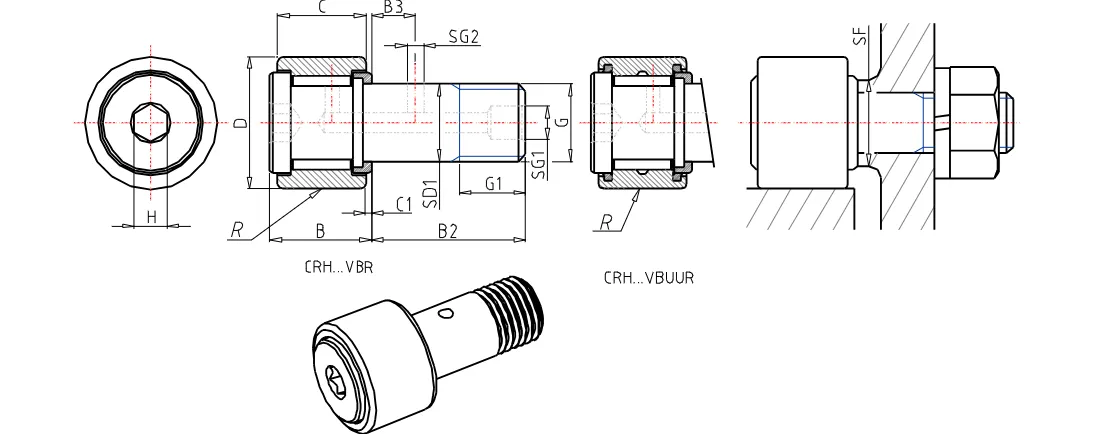

Detailed data of

CRH36VBUUR

Order Number CRH36VBUUR
Stud Diameter 28.575 mm
Outer Diameter 57.150 mm
Width 31.750 mm
Stud Diameter 28.575 mm
Thread 1-1/8-12 Length
25.400 mm
Maximum width 34.2 mm
Length 50.800 mm
Dimension 12.7 mm
Dimension 1.588 mm
Diameter 4.762 mm
Diameter 3.175 mm
Dimension 11.112 mm
Radius 600 mm
rs min. 1.588 mm
Min.Dimension related to the installation 37.306 mm
Maximum tightening torque 356.0 Nm
Basic dynamic load rating 45700 N
Basic static load rating 80600 N
Mass 858 g
