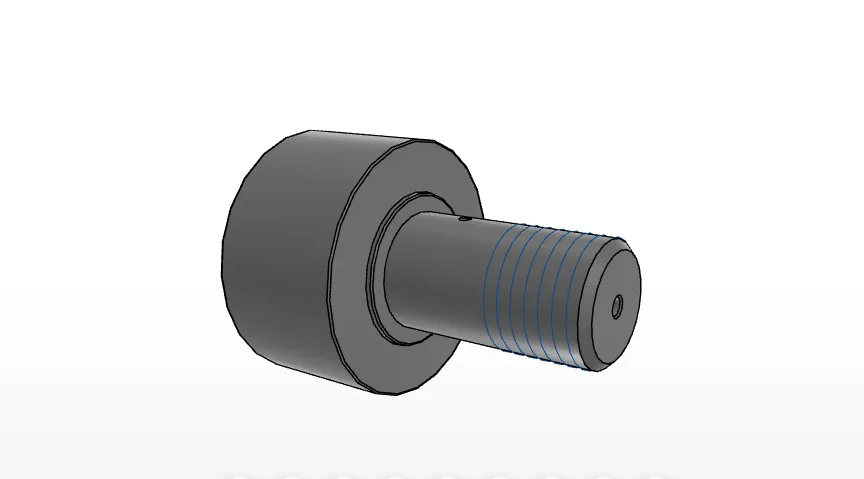

IKO CRH44V
Heavy Duty Inch Series Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CRH44V

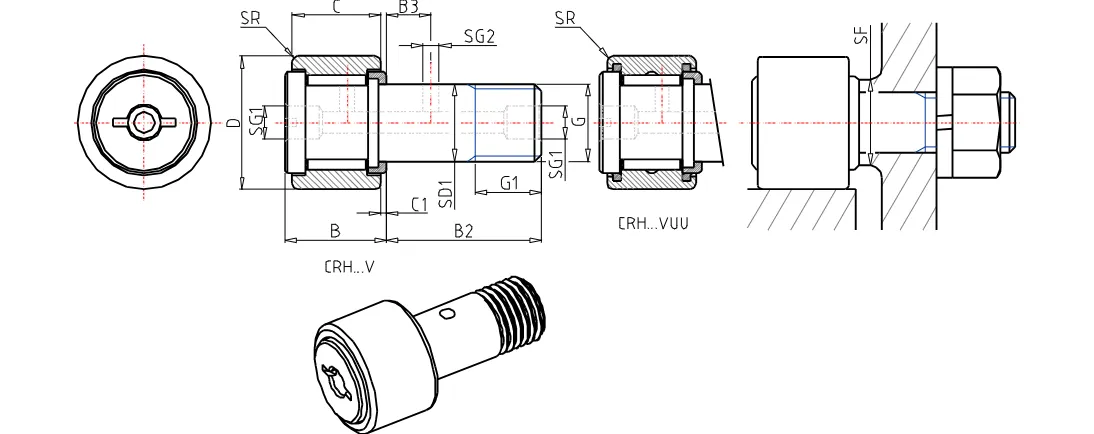

Stud Diameter
31.750
mm
Outer Diameter
69.850
mm
Width
38.100
mm
Stud Diameter
31.750
mm
Thread
1-1/4-12
Length
28.575
mm
Maximum width
40.0
mm
Length
57.150
mm
Dimension
14.288
mm
Dimension
1.588
mm
Diameter
4.762
mm
Diameter
3.175
mm
rs min.
2.381
mm
Min.Dimension related to the installation
40.878
mm
Maximum tightening torque
500.0
mm
Basic dynamic load rating
61400
N
Basic static load rating
116000
N
Mass
1460
g
