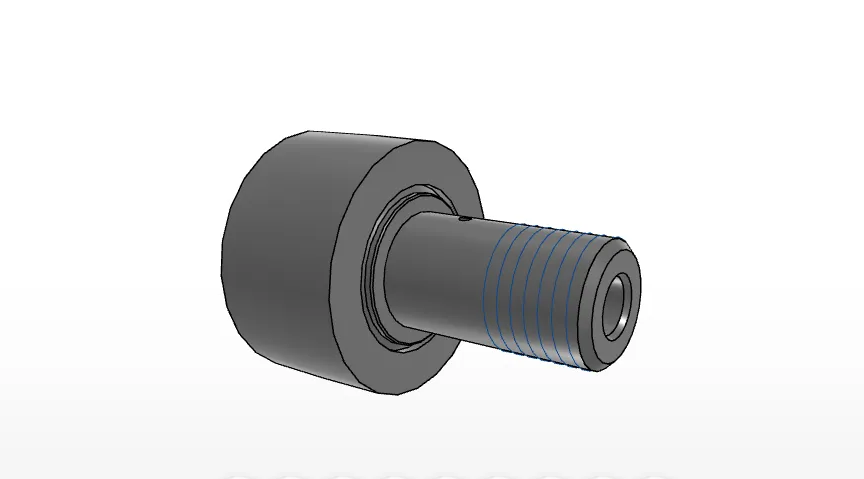

IKO CRH44VBUUR

Heavy Duty Inch Series Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

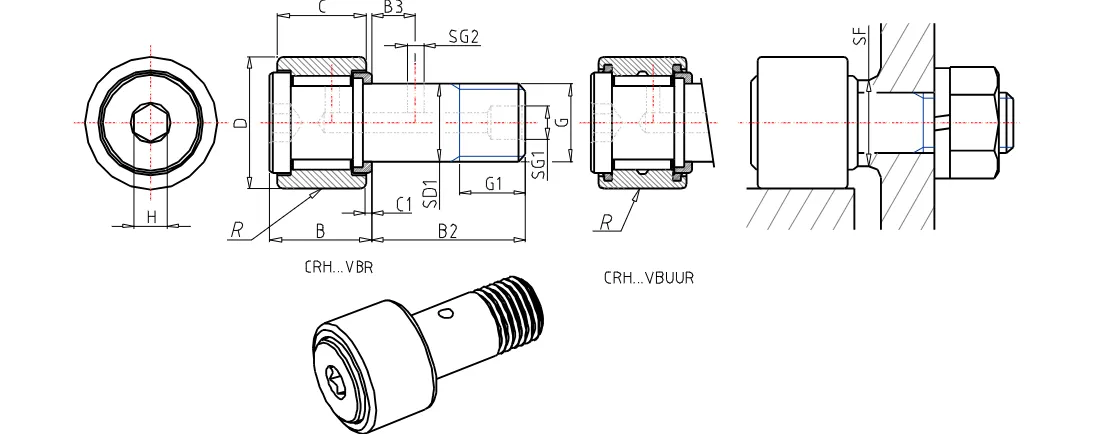

Detailed data of

CRH44VBUUR

Order Number CRH44VBUUR
Stud Diameter 31.750 mm
Outer Diameter 69.850 mm
Width 38.100 mm
Stud Diameter 31.750 mm
Thread 1-1/4-12 Length
28.575 mm
Maximum width 40.0 mm
Length 57.150 mm
Dimension 14.288 mm
Dimension 1.588 mm
Diameter 4.762 mm
Diameter 3.175 mm
Dimension 12.700 mm
Radius 760 mm
rs min. 2.381 mm
Min.Dimension related to the installation 40.878 mm
Maximum tightening torque 500.0 Nm
Basic dynamic load rating 61400 N
Basic static load rating 116000 N
Mass 1460 g
