IKO CRH48VB

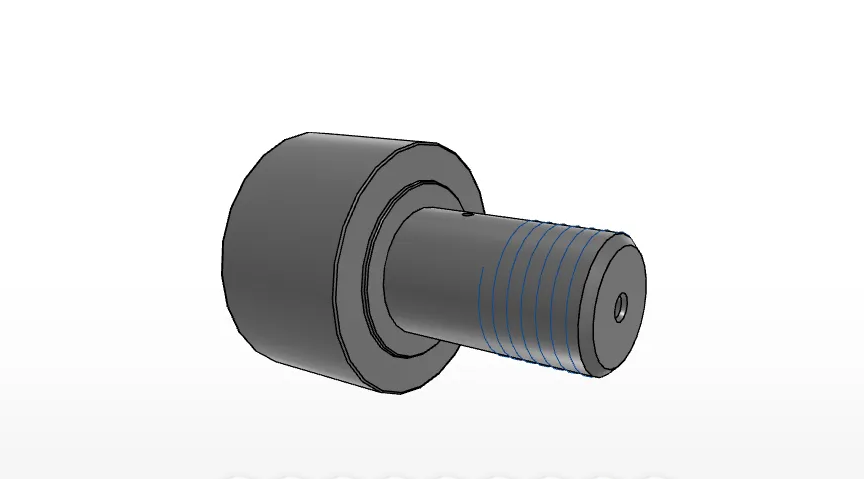

Heavy Duty Inch Series Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

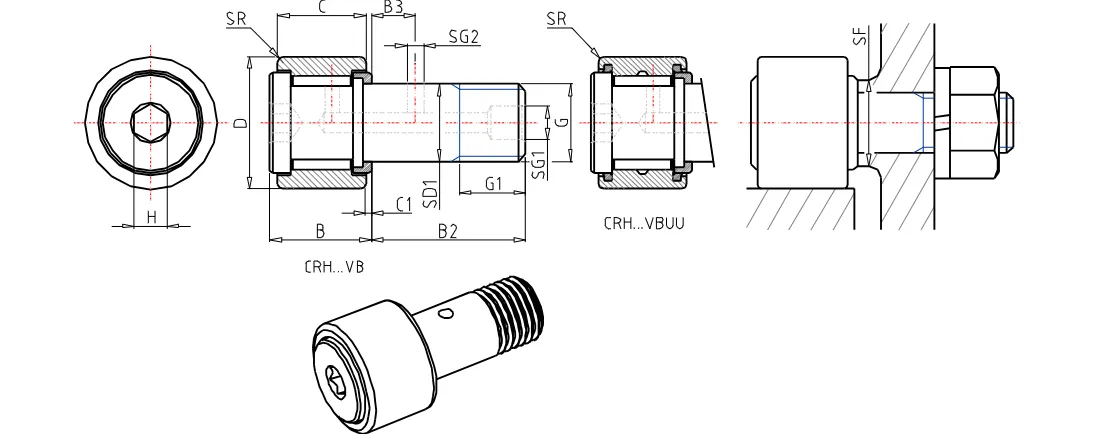

Detailed data of

CRH48VB

Order Number CRH48VB
Stud Diameter 38.100 mm
Outer Diameter 76.200 mm
Width 44.450 mm
Stud Diameter 38.000 mm
Thread 1-1/2-12 Length
31.800 mm
Maximum width 46.4 mm
Length 63.500 mm
Dimension 15.875 mm
Dimension 1.330 mm
Diameter 6.3 mm
Diameter 3.175 mm
Dimension 19.050 mm
Radius 0 mm
rs min. 2.381 mm
Min.Dimension related to the installation 51.991 mm
Maximum tightening torque 892.0 Nm
Basic dynamic load rating 77600 N
Basic static load rating 172000 N
Mass 2100 g
