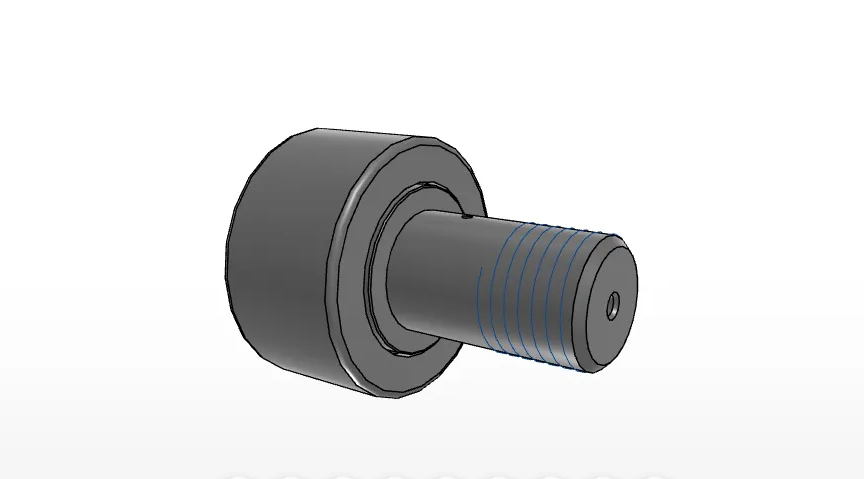

IKO CRH52VBUU
Heavy Duty Inch Series Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Sealed, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CRH52VBUU

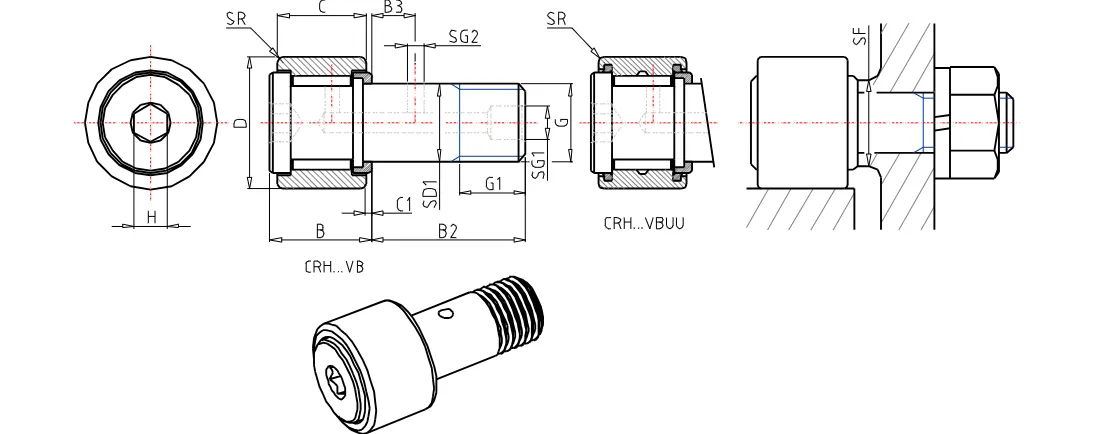

Stud Diameter
38.100
mm
Outer Diameter
82.550
mm
Width
44.450
mm
Stud Diameter
38.100
mm
Thread
1-1/2-12
Length
31.800
mm
Maximum width
46.4
mm
Length
63.500
mm
Dimension
15.875
mm
Dimension
1.330
mm
Diameter
6.3
mm
Diameter
3.175
mm
Dimension
19.050
mm
Radius
0
mm
rs min.
2.381
mm
Min.Dimension related to the installation
51.991
mm
Maximum tightening torque
892.0
Nm
Basic dynamic load rating
77600
N
Basic static load rating
172000
N
Mass
2380
g
