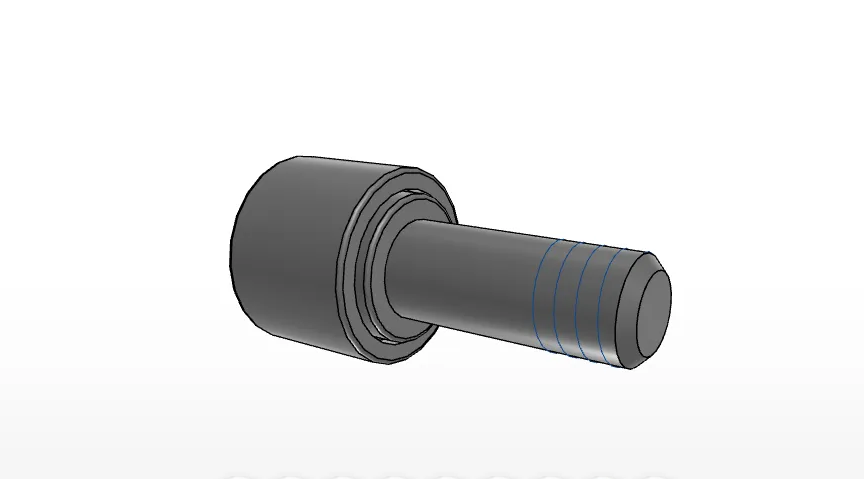

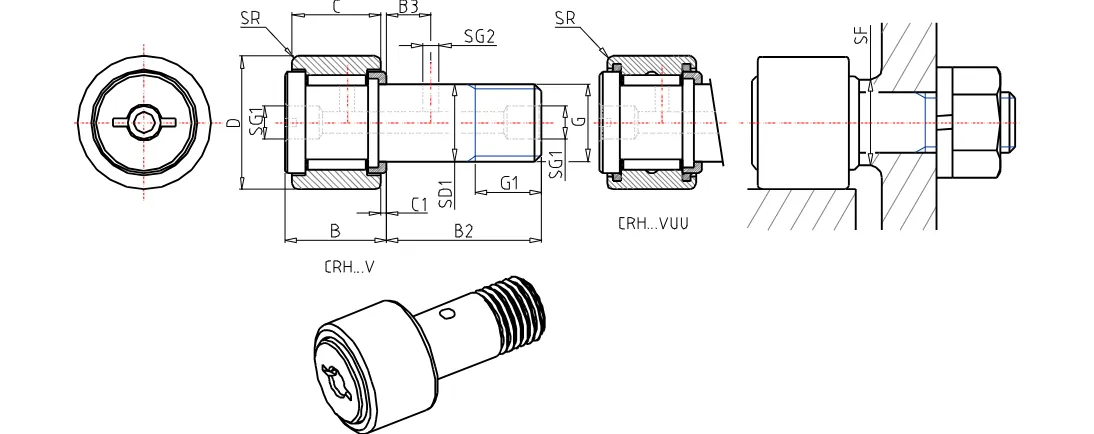

IKO CRH81V
Heavy Duty Inch Series Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CRH8-1V
Stud Diameter
6.350
mm
Outer Diameter
12.700
mm
Width
9.525
mm
Stud Diameter
6.350
mm
Thread
1/4-28
Length
6.350
mm
Maximum width
11.1
mm
Length
15.875
mm
Dimension
-
mm
Dimension
0.794
mm
Diameter
3.175
mm
Diameter
-
mm
rs min.
0.397
mm
Min.Dimension related to the installation
8.334
mm
Maximum tightening torque
3.4
mm
Basic dynamic load rating
4710
N
Basic static load rating
5410
N
Mass
12
g
