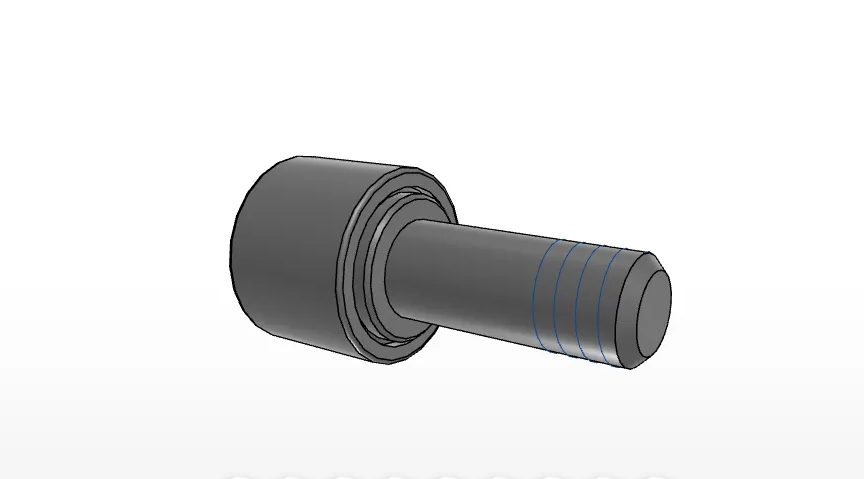

IKO CRH81VBUU

Heavy Duty Inch Series Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Sealed, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

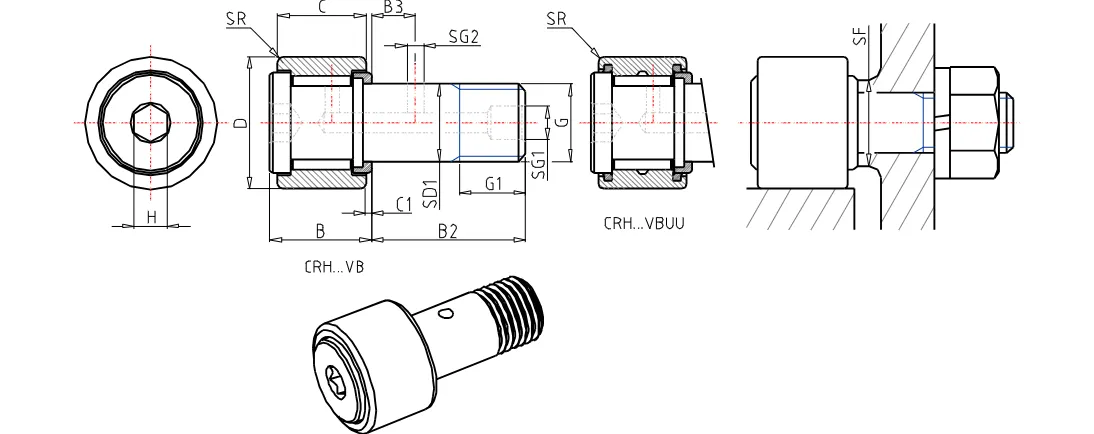

Detailed data of

CRH81VBUU

Order Number CRH8-1VBUU
Stud Diameter 6.350 mm
Outer Diameter 12.700 mm
Width 9.525 mm
Stud Diameter 6.350 mm
Thread 1/4-28 Length
6.350 mm
Maximum width 11.1 mm
Length 15.875 mm
Dimension - mm
Dimension 0.794 mm
Diameter - mm
Diameter - mm
Dimension 3.175 mm
Radius 0 mm
rs min. 0.397 mm
Min.Dimension related to the installation 8.334 mm
Maximum tightening torque 3.4 Nm
Basic dynamic load rating 4710 N
Basic static load rating 5410 N
Mass 12 g
