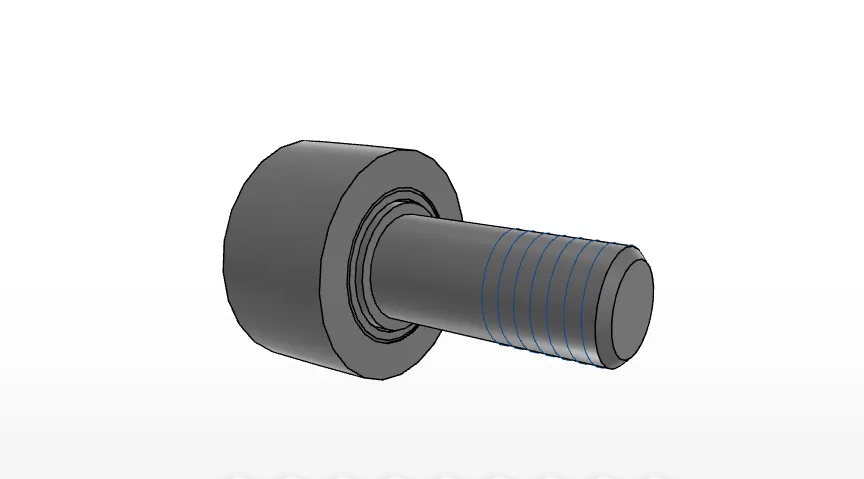

IKO NUCF10BR
Cylindrical Roller Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
IKO NUCF10BR Metric Cam Follower
The IKO NUCF10BR is a cylindrical roller metric cam follower in the IKO Cam Followers product series. The supplied data identifies a full complement internal structure, high carbon steel construction, crowned outer ring, shielded design, and hex head.
What bearing type and model is this product?
This is model NUCF10BR, listed under Cam Followers. Its category path is Brand > IKO > Cam Followers, and the description identifies it as a cylindrical roller metric cam follower.

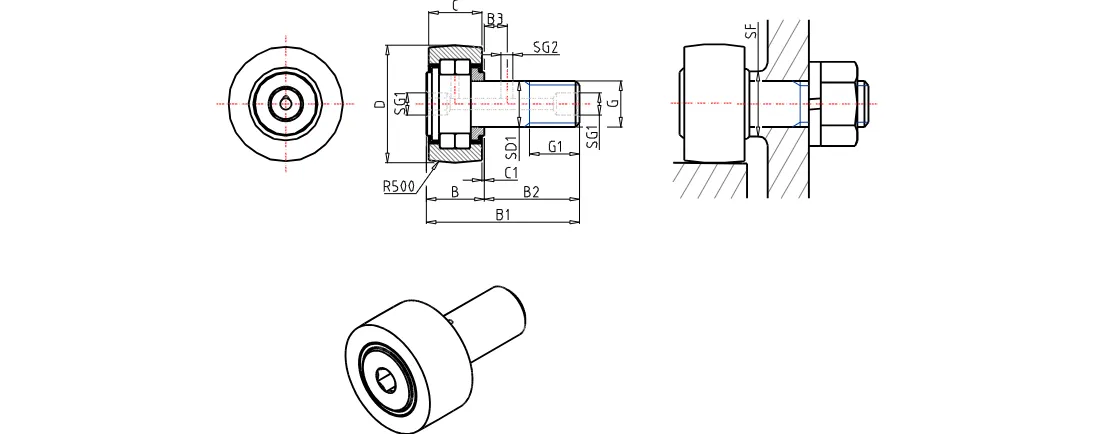

NUCF10BR Dimensions and Installation Data
- Stud diameter: 10
- Outer diameter: 22
- Width: 12
- Thread: M10x1.25
- Length: 12; separate listed length: 23.0
- Maximum width: 13.2
- Maximum total length: 36.2
- Dimension H: 4
- Minimum installation-related dimension: 12
- Maximum tightening torque: 13.8
What dimensional details should be checked before installation?
Verify the 10 stud diameter, 22 outer diameter, 12 width, M10x1.25 thread, 13.2 maximum width, 36.2 maximum total length, and the installation-related dimensions against the mating equipment. The supplied data does not state measurement units for every numeric field.
Load Ratings, Construction, and Mass
The NUCF10BR uses a full complement internal structure and high carbon steel bearing material. Additional listed features include a crowned outer ring, shielding, and a hex head.
- Basic dynamic load rating: 10400
- Basic static load rating: 11500
- Maximum static allowable load: 5300
- Mass: 44
What load and construction information is provided for the NUCF10BR?
The product data lists basic dynamic and static load ratings of 10400 and 11500, a maximum static allowable load of 5300, and a mass of 44. Because units are not supplied in the source data, they should be confirmed with the manufacturer documentation before use.
