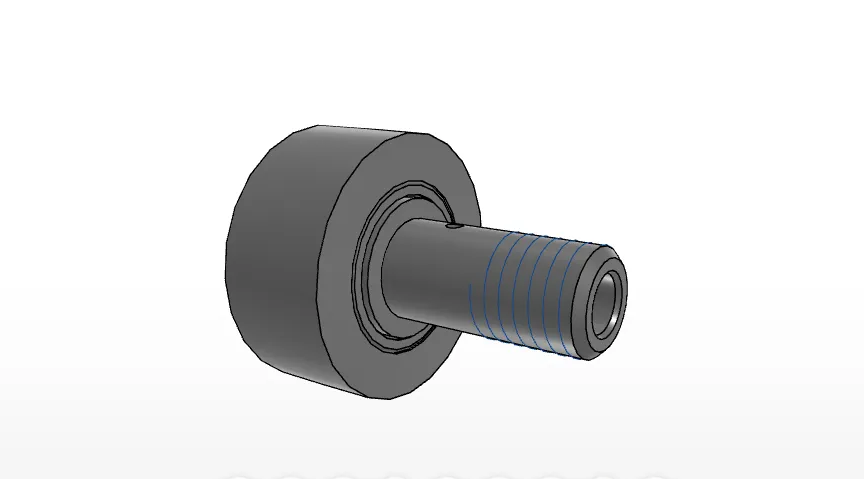

IKO NUCF121R
Cylindrical Roller Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NUCF12-1R
Stud Diameter
12
Outer Diameter
32
Width
14
Stud Diameter
12
Thread
M12x1.5
Length
13
Maximum width
15.2
Max.Total length
40.2
Length
25.0
Dimension
6
Dimension
0.6
Diameter
6
Diameter
3
Min.Dimension related to the installation
17
Maximum tightening torque
21.9
Basic dynamic load rating
14000
Basic static load rating
13400
Max.Static allowable load
9040
Mass
97
