IKO NUCF12R
Cylindrical Roller Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,

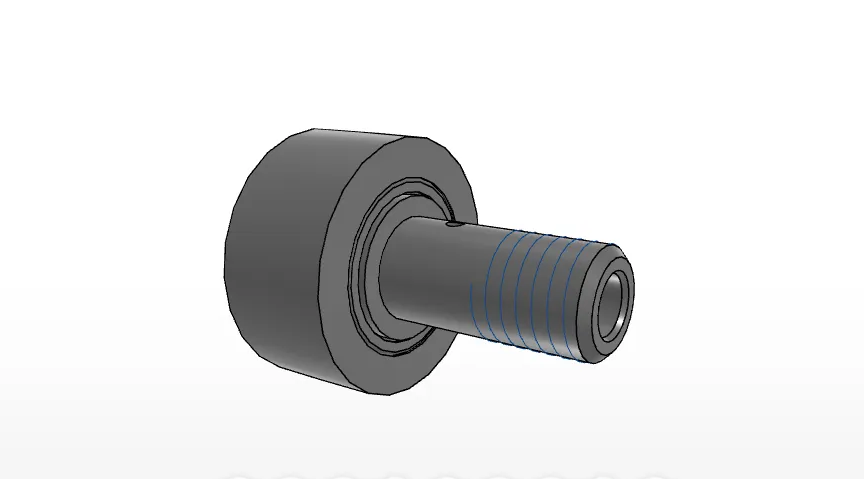

The IKO NUCF12R Is a Cylindrical Roller Metric Cam Follower
The NUCF12R is an IKO cam follower in the Cam Followers product series. The supplied data identifies it as a full complement, cylindrical roller metric design with a crowned outer ring, shielded arrangement, and screw driver slot.
What type of bearing is the NUCF12R?
The bearing type is listed as Cam Followers. Its internal structure is Full Complement, and the product description specifies a cylindrical roller metric cam follower.
The NUCF12R Uses High Carbon Steel Construction
The supplied product data lists the bearing material as High Carbon Steel. No additional material grade, surface treatment, or certification is specified in the available data.
What design features are documented for this cam follower?
- Material: High carbon steel
- Internal structure: Full complement
- Outer ring: Crowned outer ring
- Configuration: Shielded
- Feature: Screw driver slot
The NUCF12R Has Supplied Metric Dimensional and Load Data
The product data lists a stud diameter of 12, outer diameter of 30, width of 14, M12x1.5 thread, and mass of 86. The listed basic dynamic load rating is 14000, basic static load rating is 13400, and maximum static allowable load is 5650.

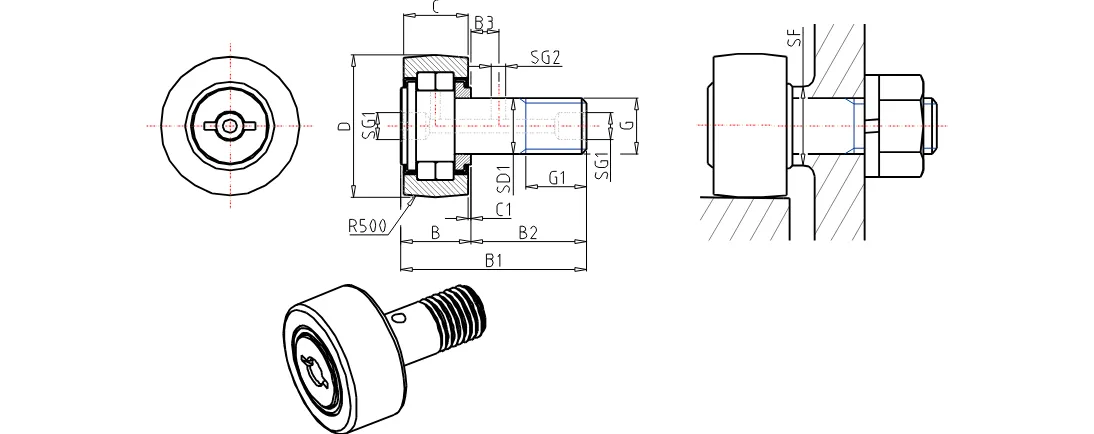

What dimensions and values are provided?
- Stud diameter: 12
- Outer diameter: 30
- Width: 14
- Thread: M12x1.5
- Maximum total length: 40.2
- Maximum tightening torque: 21.9
- Mass: 86
Additional supplied values include length 13, maximum width 15.2, length 25.0, dimension 6, dimension 0.6, diameter 6, diameter 3, and a minimum installation-related dimension of 17. Units should be verified against the original manufacturer documentation where they are not explicitly stated in the supplied data.
