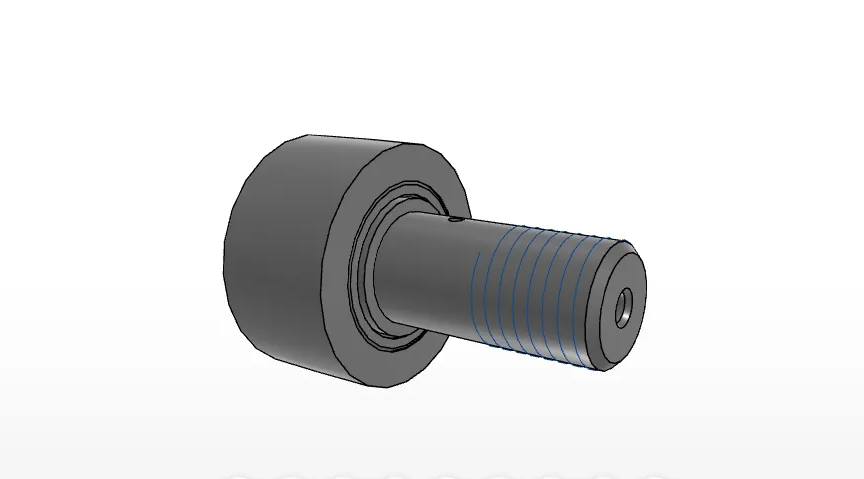

IKO NUCF16BR
Cylindrical Roller Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NUCF16BR
Stud Diameter
16
Outer Diameter
35
Width
18
Stud Diameter
16
Thread
M16x1.5
Length
17
Maximum width
19.6
Max.Total length
52.1
Length
32.5

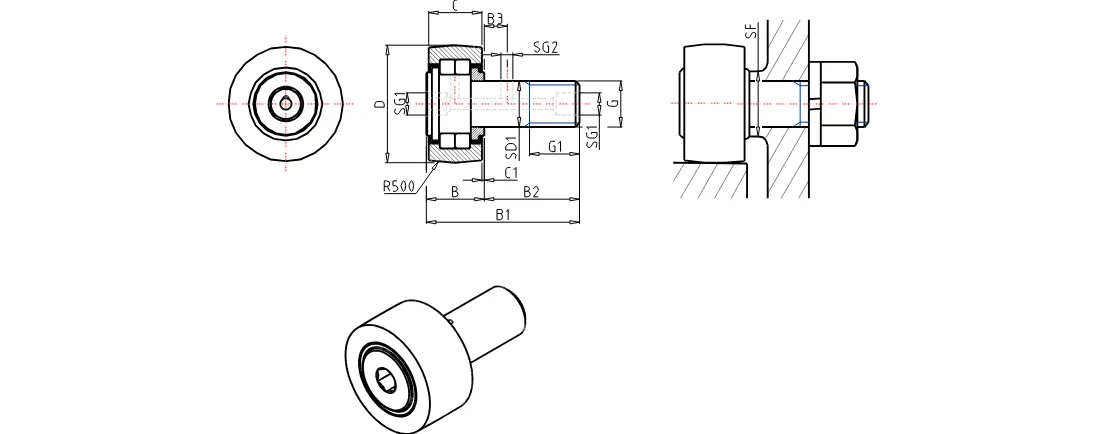

Dimension
8
Dimension
0.8
Diameter
4
Diameter
3
H
6
Min.Dimension related to the installation
20
Maximum tightening torque
58.5
Basic dynamic load rating
23400
Basic static load rating
27300
Max.Static allowable load
11800
Mass
167
