IKO NUCF16R
Cylindrical Roller Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,

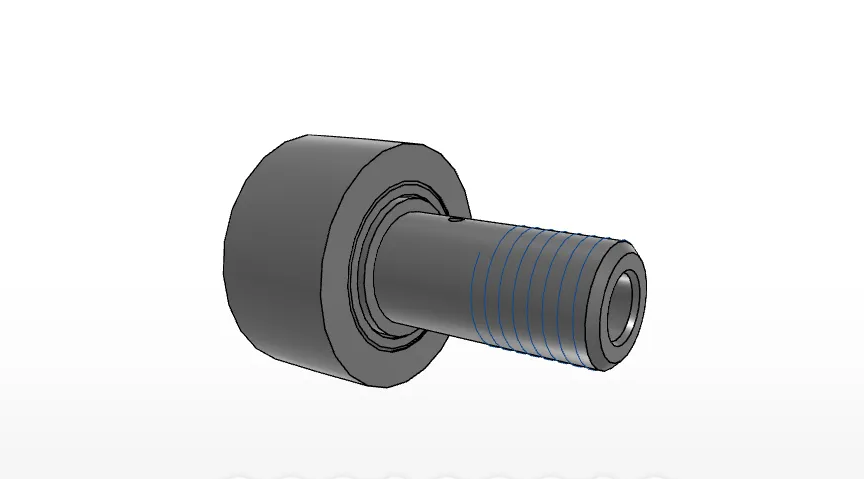

NUCF16R IKO Cam Follower Overview
The NUCF16R is an IKO cam follower in the Cam Followers product series. It uses a cylindrical roller, full complement internal structure and is made from high carbon steel. The supplied description identifies a crowned outer ring, shielded arrangement, and screw driver slot.
What type of bearing is the NUCF16R?
It is a metric cam follower with a cylindrical roller, full complement design. The listed category path is Brand > IKO > Cam Followers.

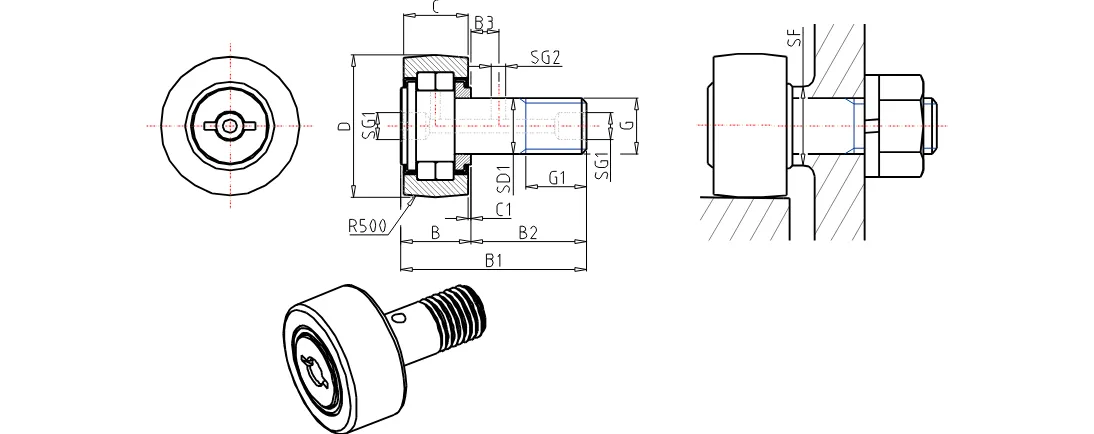

NUCF16R Dimensions and Installation Data
The product data lists the following dimensions and related values for the NUCF16R:
- Stud diameter: 16
- Outer diameter: 35
- Width: 18
- Thread: M16x1.5
- Length: 17
- Maximum width: 19.6
- Maximum total length: 52.1
- Length: 32.5
- Dimension: 8
- Dimension: 0.8
- Diameter: 6
- Diameter: 3
- Minimum installation-related dimension: 20
- Maximum tightening torque: 58.5
What stud and outer ring sizes are provided?
The supplied data identifies a 16 stud diameter, a 35 outer diameter, an 18 width, and an M16x1.5 thread. Units are not stated in the supplied product data.
NUCF16R Load Ratings and Mass
The NUCF16R data includes the following load and mass values:
- Basic dynamic load rating: 23400
- Basic static load rating: 27300
- Maximum static allowable load: 11800
- Mass: 167
What load and mass information is listed for this cam follower?
The product data lists a basic dynamic load rating of 23400, basic static load rating of 27300, maximum static allowable load of 11800, and mass of 167. Load units and mass units are not supplied.
