IKO NUCF18BR
Cylindrical Roller Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
Order Number
NUCF18BR
Stud Diameter
18
Outer Diameter
40
Width
20
Stud Diameter
18
Thread
M18x1.5
Length
19
Maximum width
21.6
Max.Total length
58.1
Length
36.5
Dimension
8
Dimension
0.8
Diameter
6
Diameter
3
H
8
Min.Dimension related to the installation
22
Maximum tightening torque
86.2
Basic dynamic load rating
25200
Basic static load rating
30900
Max.Static allowable load
20300
Mass
244

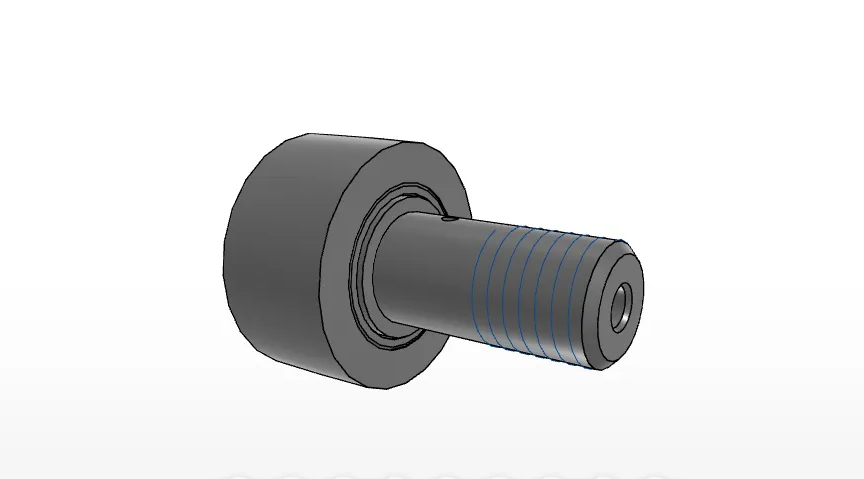

IKO NUCF18BR Metric Cam Follower Overview
What is the NUCF18BR?
The IKO NUCF18BR is a cylindrical roller metric cam follower in the Cam Followers product series. It has a full complement internal structure, a crowned outer ring, shielding, and a hex-head stud design.
- Brand: IKO
- Model / Order Number: NUCF18BR
- Bearing type: Cam Followers
- Internal structure: Full complement
- Material: High carbon steel
- Outer ring: Crowned
- Configuration: Shielded, hex head

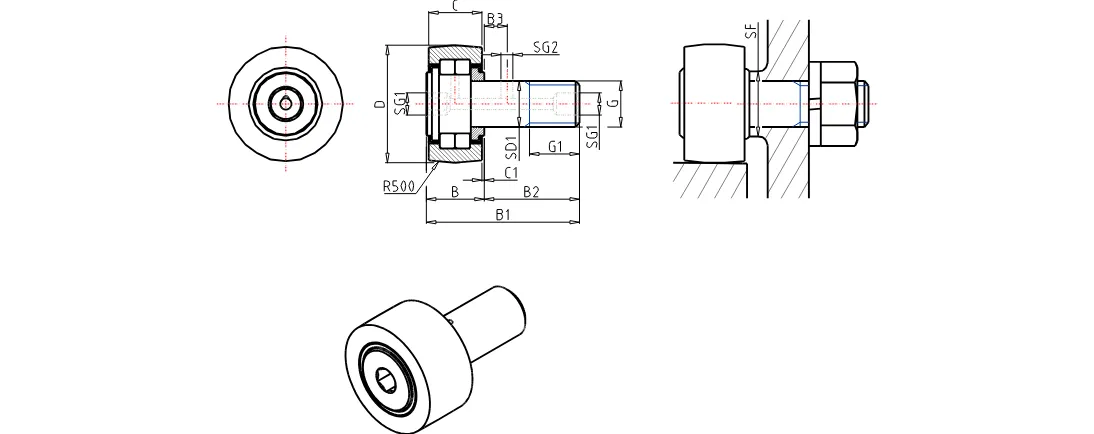

NUCF18BR Dimensions and Stud Details
What dimensions are provided for the NUCF18BR?
The supplied product data lists the following metric dimensions and related stud information for the NUCF18BR:
- Stud diameter: 18 mm
- Outer diameter: 40 mm
- Width: 20 mm
- Thread: M18 x 1.5
- Thread length: 19 mm
- Maximum width: 21.6 mm
- Maximum total length: 58.1 mm
- Length: 36.5 mm
- Dimension 8: 8 mm
- Dimension 0.8: 0.8
- Diameter 6: 6 mm
- Diameter 3: 3 mm
- H: 8 mm
- Minimum installation-related dimension: 22 mm
NUCF18BR Load, Torque, and Mass Data
What performance values are included in the supplied data?
The product data provides load ratings, an allowable static load, a tightening torque value, and mass. These values should be reviewed against the selected assembly requirements before use.
- Basic dynamic load rating: 25,200 N
- Basic static load rating: 30,900 N
- Maximum static allowable load: 20,300 N
- Maximum tightening torque: 86.2
- Mass: 244 g
Units for torque are not stated in the supplied data.
