IKO NUCF18R
Cylindrical Roller Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
Order Number
NUCF18R
Stud Diameter
18
Outer Diameter
40
Width
20
Stud Diameter
18
Thread
M18x1.5
Length
19
Maximum width
21.6
Max.Total length
58.1
Length
36.5
Dimension
8
Dimension
0.8
Diameter
6
Diameter
3
Min.Dimension related to the installation
22
Maximum tightening torque
86.2
Basic dynamic load rating
25200
Basic static load rating
30900
Max.Static allowable load
20300
Mass
244

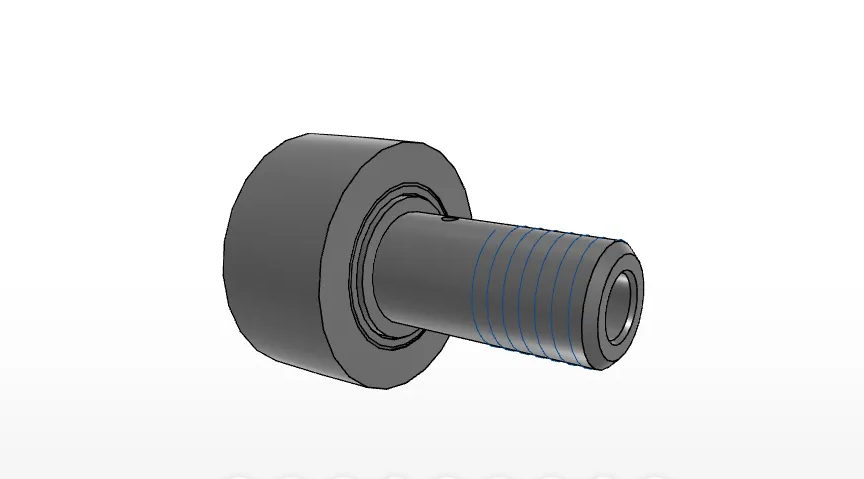

IKO NUCF18R Cam Follower Overview
What is the NUCF18R?
The IKO NUCF18R is a metric cam follower in the IKO Cam Followers series. The supplied data identifies it as a cylindrical roller, full complement bearing made from high carbon steel, with a crowned outer ring, shielding, and a screw driver slot.

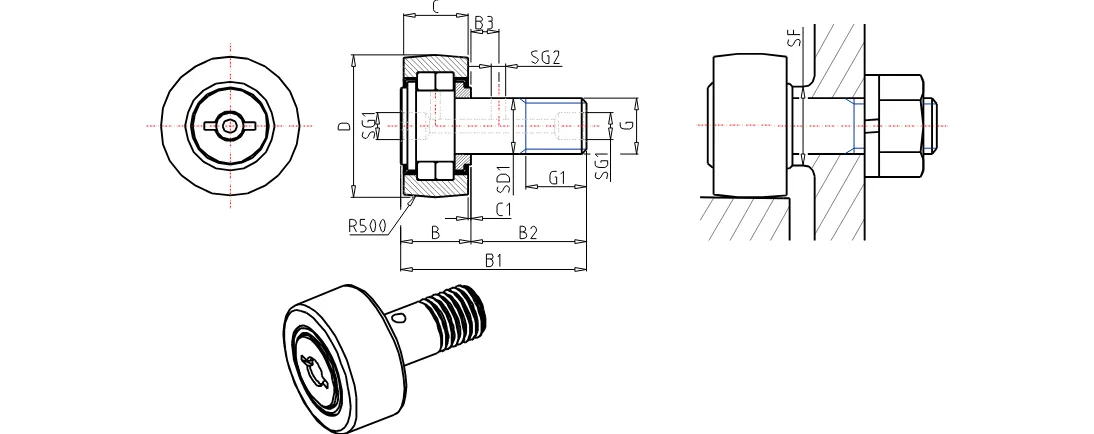

NUCF18R Dimensions and Construction
What dimensions and structure are listed for the NUCF18R?
The product data lists the following dimensions and structural details:
- Stud diameter: 18
- Outer diameter: 40
- Width: 20
- Thread: M18x1.5
- Length: 19 and 36.5 as listed in separate data fields
- Maximum width: 21.6
- Maximum total length: 58.1
- Maximum tightening torque: 86.2
- Internal structure: Full complement
- Material: High carbon steel
NUCF18R Load Ratings and Identification
What load and order information is provided for the NUCF18R?
The order number is NUCF18R, and the listed bearing type is Cam Followers. The supplied ratings are:
- Basic dynamic load rating: 25200
- Basic static load rating: 30900
- Maximum static allowable load: 20300
- Mass: 244
Units for the dimensions, torque, load ratings, and mass are not specified in the supplied data.
