IKO NUCF201BR
Cylindrical Roller Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
IKO NUCF201BR Cam Follower Overview
What is the NUCF201BR?
The NUCF201BR is an IKO cam follower in the Cam Followers product series. It is a cylindrical roller metric cam follower with a full complement internal structure, high carbon steel construction, crowned outer ring, shielding, and a hex head.
- Brand: IKO
- Product series: Cam Followers
- Bearing type: Cam Followers
- Material: High Carbon Steel
- Internal structure: Full Complement

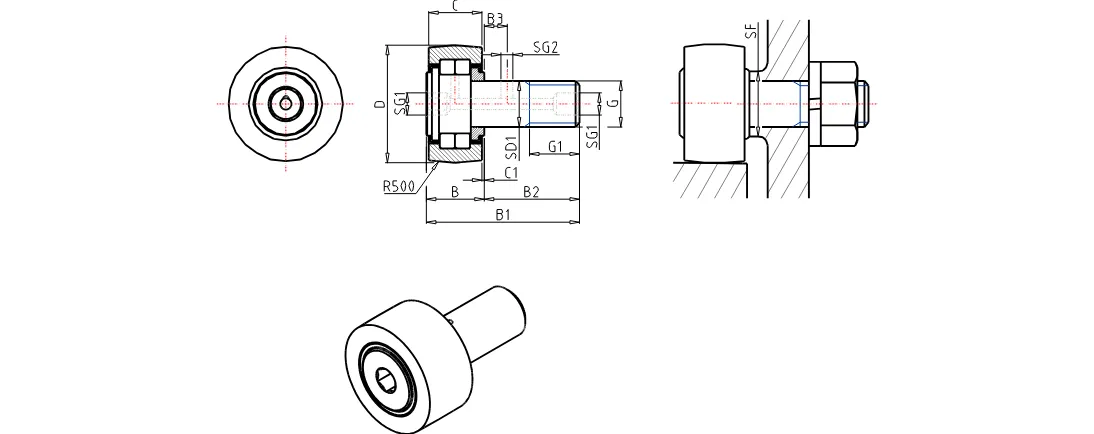

NUCF201BR Dimensions and Stud Details
What dimensions are listed for this cam follower?
The supplied data identifies the NUCF201BR by order number NUCF20-1BR and lists the following measurements. Dimensions are presented as supplied without adding unstated units beyond the source labels.
- Stud diameter: 20
- Outer diameter: 47
- Width: 24
- Thread: M20x1.5
- Length: 21
- Maximum width: 25.6
- Maximum total length: 66.1
- Length: 40.5
- Dimension: 9
- Dimension: 0.8
- Diameter: 6
- Diameter: 4
- H: 8
- Minimum installation-related dimension: 27
NUCF201BR Load, Torque, and Mass Data
What performance values are provided?
The product data includes load, tightening torque, and mass figures for the IKO NUCF201BR. These values are stated as supplied and should be reviewed against the intended installation requirements.
- Maximum tightening torque: 119.0
- Basic dynamic load rating: 38900
- Basic static load rating: 49000
- Maximum static allowable load: 27200
- Mass: 384
Refer to the original IKO product documentation for unit definitions and installation guidance not included in the supplied data.
