IKO NUCF201R
Cylindrical Roller Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,

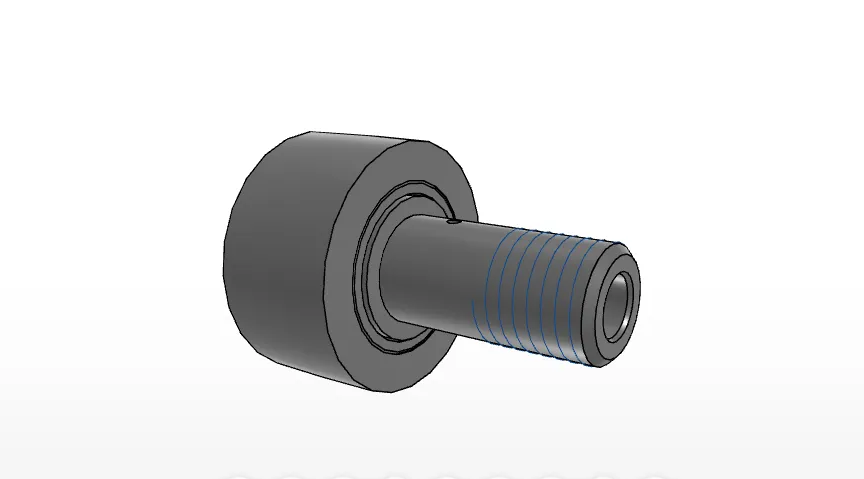

IKO NUCF201R Cam Follower Overview
The NUCF201R is an IKO cam follower in the Cam Followers product series. It uses a full complement cylindrical roller arrangement and a high carbon steel construction. The supplied design features include a crowned outer ring, shielding, and a screwdriver slot.
What bearing type is the NUCF201R?
The NUCF201R is classified as a cam follower with a cylindrical roller, metric, full complement internal structure. It is listed under the category path Brand > IKO > Cam Followers.

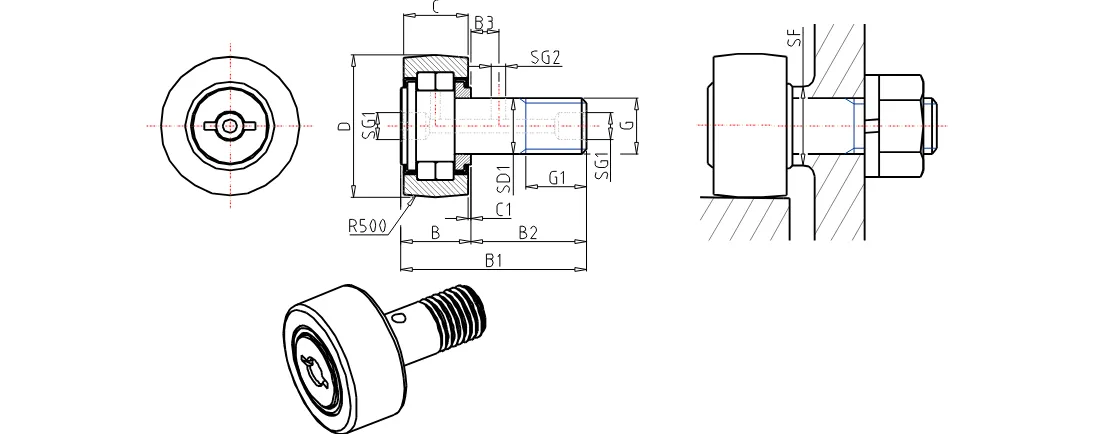

NUCF201R Dimensions and Installation Data
The supplied dimensional data identifies a 20 mm stud diameter, 47 mm outer diameter, 24 mm width, M20x1.5 thread, and a stud-related length value of 21. Additional supplied values include maximum width 25.6, maximum total length 66.1, length 40.5, and maximum tightening torque 119.0.
What dimensions should be reviewed before installation?
Before installation, review the supplied measurements: stud diameter 20, outer diameter 47, width 24, thread M20x1.5, length 21, maximum width 25.6, maximum total length 66.1, length 40.5, dimension 9, dimension 0.8, diameter 8, diameter 4, and minimum installation-related dimension 27.
NUCF201R Load and Product Details
The product data lists a basic dynamic load rating of 38900, a basic static load rating of 49000, a maximum static allowable load of 27200, and a mass of 384. The order number is shown as NUCF20-1R, while the model is identified as NUCF201R.
What construction and load values are supplied?
The bearing material is listed as high carbon steel, and the internal structure is full complement. The supplied load values are basic dynamic load rating 38900, basic static load rating 49000, and maximum static allowable load 27200; units are not specified in the provided data.
