IKO NUCF20BR
Cylindrical Roller Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,

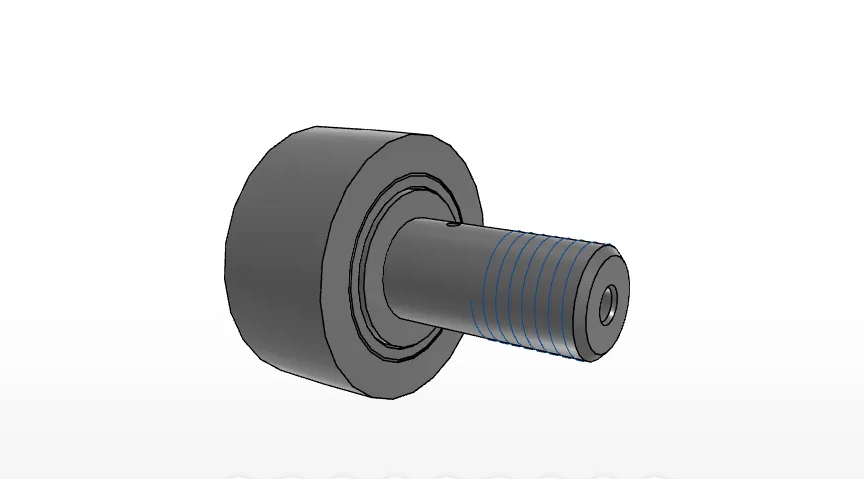

IKO NUCF20BR Cam Follower Overview
The NUCF20BR is an IKO cam follower in the Cam Followers product series. It is a cylindrical roller, metric design with a full complement internal structure, high carbon steel construction, crowned outer ring, shielding, and a hex head.
What bearing type is the NUCF20BR?
The NUCF20BR is listed as a Cam Follower. Its supplied description identifies it as a cylindrical roller, metric, full complement cam follower with a crowned outer ring and shielded arrangement.

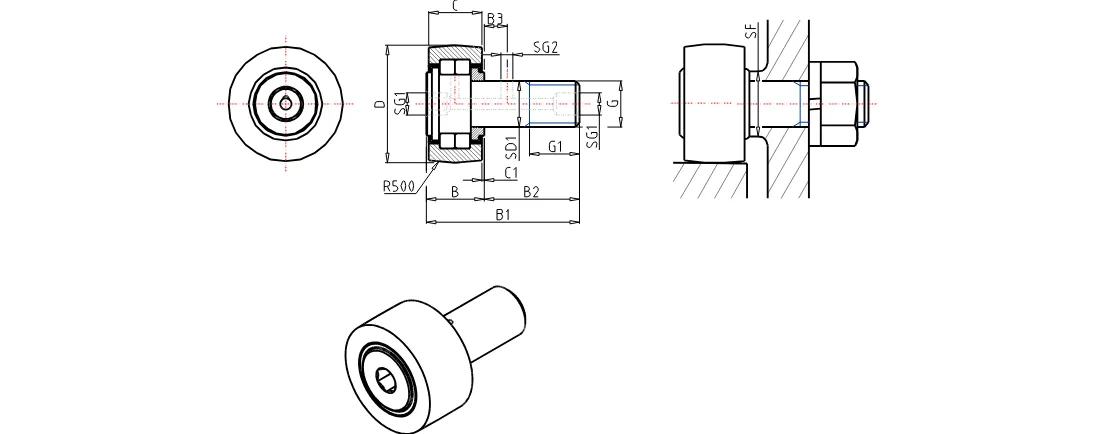

NUCF20BR Dimensions and Construction
- Stud diameter: 20 mm
- Outer diameter: 52 mm
- Width: 24 mm
- Thread: M20x1.5
- Thread length: 21 mm
- Maximum width: 25.6 mm
- Maximum total length: 66.1 mm
- Length: 40.5 mm
- H: 8 mm
- Mass: 457 g
What material and structure are specified?
The product data lists the bearing material as high carbon steel and the internal structure as full complement. Additional stated features include the crowned outer ring, shielded design, and hex head.
NUCF20BR Load and Installation Data
The supplied technical data includes load values and installation-related figures for the IKO NUCF20BR. The maximum tightening torque is listed as 119.0, and the minimum dimension related to installation is listed as 31.
- Basic dynamic load rating: 43,100 N
- Basic static load rating: 58,100 N
- Maximum static allowable load: 30,000 N
What additional dimensions are provided in the product data?
The data also lists dimension 9, dimension 0.8, diameter 6, diameter 4, H 8, minimum installation-related dimension 31, and maximum tightening torque 119.0. Unit context for these individual values should be checked against the original IKO documentation before use.
