IKO NUCF20R
Cylindrical Roller Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,

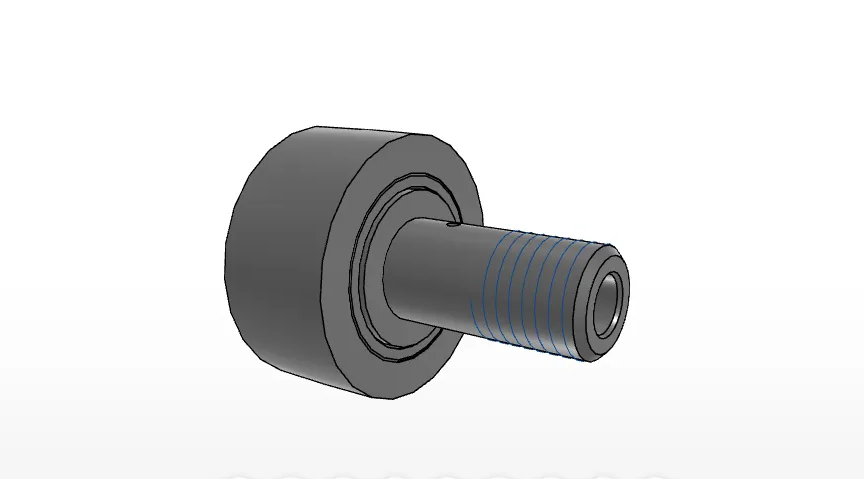

NUCF20R IKO Cam Follower Overview
The NUCF20R is an IKO Cam Follower from the Cam Followers product series. It is designed as a cylindrical roller, metric cam follower with a full complement internal structure and a high carbon steel construction. The listed design features include a crowned outer ring, shielding, and a screw driver slot.
What bearing type and material are specified for the NUCF20R?
The product data identifies the NUCF20R as a Cam Follower. Its bearing material is listed as High Carbon Steel, and its internal structure is listed as Full Complement.

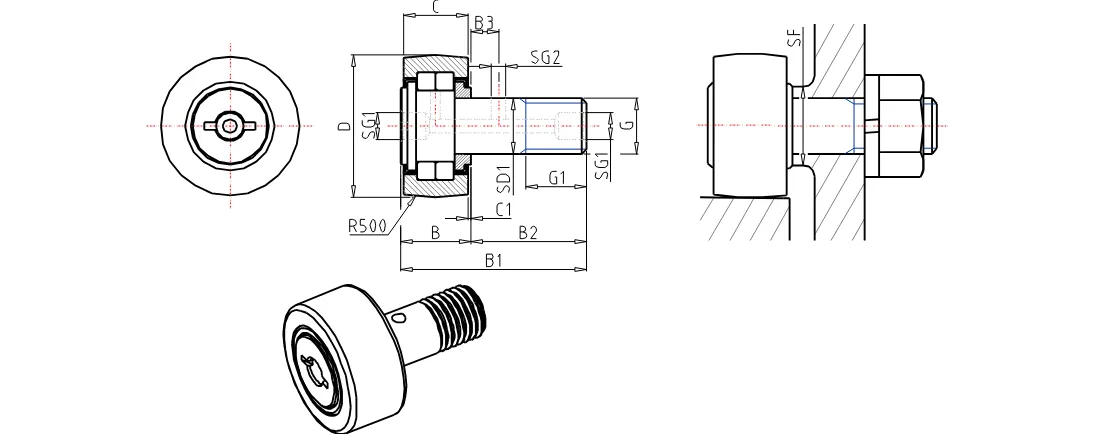

NUCF20R Dimensions and Stud Details
The NUCF20R dimensional data includes a 20 mm stud diameter, 52 mm outer diameter, and 24 mm width. The thread is specified as M20x1.5. Additional listed dimensions include a 21 mm length, 40.5 mm length, 25.6 mm maximum width, 66.1 mm maximum total length, and 31 mm minimum dimension related to installation.
What other dimensional values are provided for the NUCF20R?
- Dimension: 9
- Dimension: 0.8
- Diameter: 8
- Diameter: 4
The product data also lists a mass of 457; the unit is not specified in the supplied data.
NUCF20R Load and Torque Data
The supplied product data lists a basic dynamic load rating of 43100, a basic static load rating of 58100, and a maximum static allowable load of 30000. A maximum tightening torque of 119.0 is also listed. Units for these values are not provided in the source data.
What features distinguish the NUCF20R cam follower?
The NUCF20R is described with a crowned outer ring, shielded arrangement, screw driver slot, full complement cylindrical roller structure, and high carbon steel bearing material. These details are limited to the supplied product information and should be checked against the required installation specification before selection.
