IKO NUCF24R
Cylindrical Roller Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,
The IKO NUCF24R Is a Metric Cylindrical Roller Cam Follower
What are the basic identification details for the NUCF24R?
The NUCF24R is an IKO cam follower in the Cam Followers product series. The supplied product data identifies it as a cylindrical roller, metric cam follower with a full complement internal structure and high carbon steel bearing material.
- Brand: IKO
- Order number / model: NUCF24R
- Bearing type: Cam Followers
- Internal structure: Full Complement
- Bearing material: High Carbon Steel
The NUCF24R Includes the Supplied Design Features
What construction features are listed for this cam follower?
The product description lists a crowned outer ring, shielded configuration, screw driver slot, and full complement cylindrical roller arrangement. These details describe the supplied product configuration without adding unlisted application or certification claims.
- Roller type: Cylindrical roller
- Design: Full complement
- Outer ring: Crowned
- Protection: Shielded
- Installation feature: Screw driver slot
The NUCF24R Has the Listed Dimensions and Load Values
What measurements and ratings are provided in the product data?

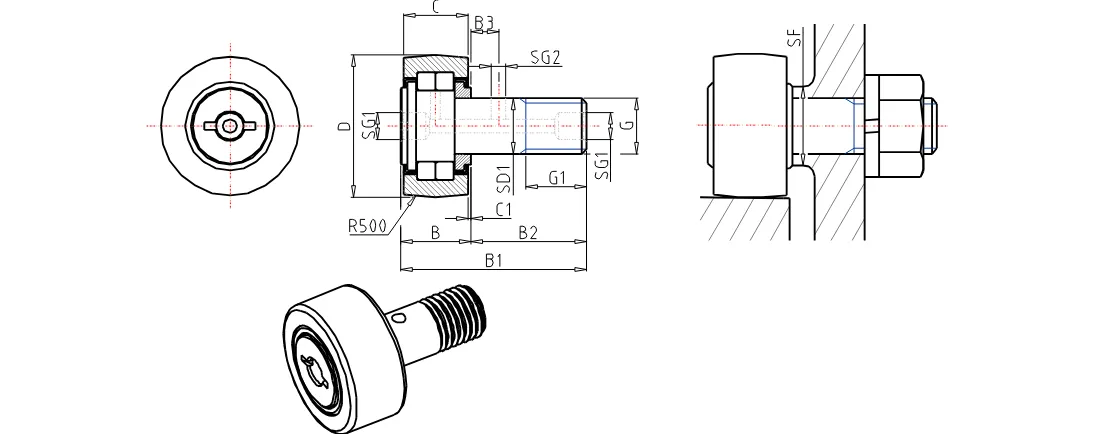

The supplied data includes the following dimensions, torque, mass, and load-rating values. Values are presented as provided; confirm the drawing or manufacturer data before selecting the part for a specific installation.
- Stud diameter: 24
- Outer diameter: 62
- Width: 29
- Thread: M24x1.5
- Thread length: 25
- Maximum width: 30.6
- Maximum total length: 80.1
- Length: 49.5
- Maximum tightening torque: 215.0
- Basic dynamic load rating: 58200
- Basic static load rating: 75300
- Maximum static allowable load: 35200
- Mass: 789
Units for the dimensions, torque, load ratings, and mass are not specified in the supplied data.
