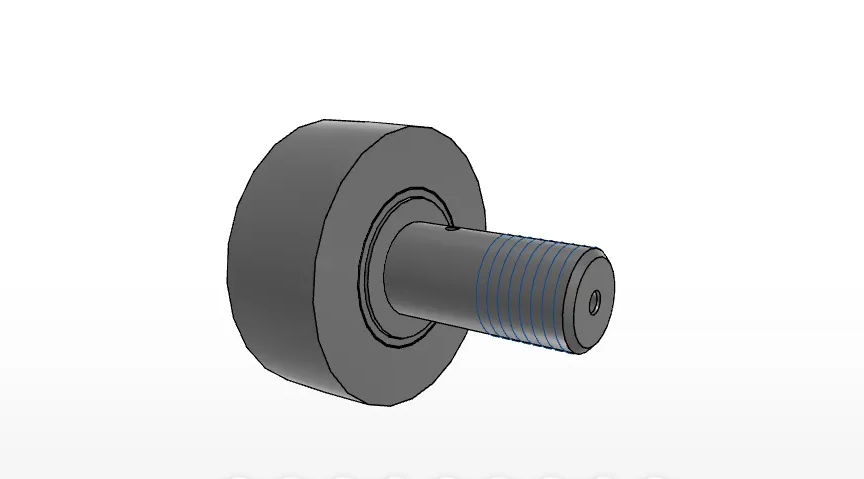

IKO NUCF302BR
Cylindrical Roller Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
IKO NUCF302BR Cam Follower Product Overview
What is the NUCF302BR?
The IKO NUCF302BR is a metric cam follower in the Cam Followers product series. The supplied data identifies it as a cylindrical roller cam follower with a full complement internal structure, high carbon steel construction, crowned outer ring, shielding, and a hex head.
- Brand: IKO
- Model/order number: NUCF302BR / NUCF30-2BR
- Bearing type: Cam Followers
- Material: High Carbon Steel
- Internal structure: Full Complement
NUCF302BR Dimensions and Installation Data
What dimensions are provided for the NUCF302BR?
The product data lists the following metric dimensions and related installation values. Values are presented as supplied, without adding unspecified units beyond the metric product description.
- Stud diameter: 30
- Outer diameter: 90
- Width: 35
- Thread: M30x1.5
- Length: 32
- Maximum width: 37.0
- Maximum total length: 100.0
- Length: 63.0
- Dimension: 15
- Dimension: 1.0
- Diameter: 6
- Diameter: 4
- H: 17
- Minimum installation-related dimension: 45
NUCF302BR Load Ratings and Mass
What load and tightening information is available?
The supplied data includes load ratings, a maximum static allowable load, maximum tightening torque, and mass. These values should be used as reference data from the product record, with engineering suitability assessed against the intended installation.
- Basic dynamic load rating: 90300
- Basic static load rating: 121000
- Maximum static allowable load: 98300
- Maximum tightening torque: 438.0
- Mass: 1970
The NUCF302BR is listed under Brand > IKO > Cam Followers.
