IKO NUCF302R
Cylindrical Roller Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,

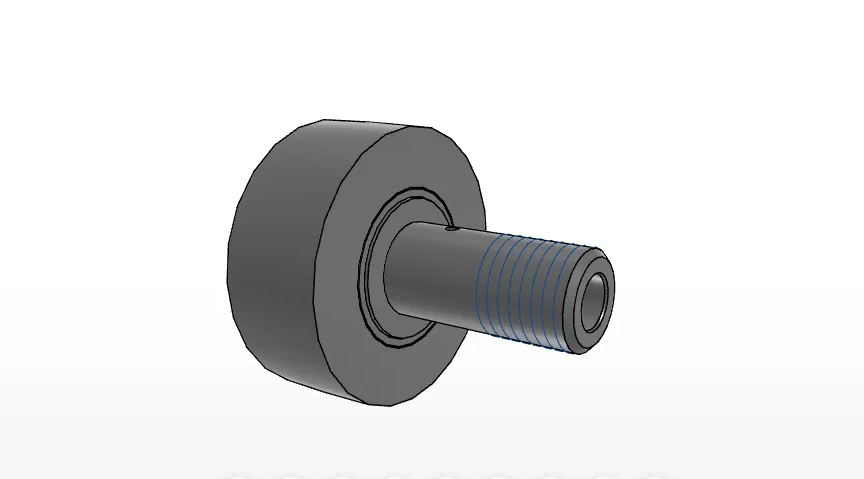

NUCF302R IKO Cam Follower Product Overview
The NUCF302R is an IKO cam follower in the Cam Followers product series. It uses a full complement cylindrical roller internal structure and is made of high carbon steel. The listed configuration includes a crowned outer ring, shielding, and a screwdriver slot.
What type of bearing is the NUCF302R?
It is categorized as a cam follower within the IKO Cam Followers series. The supplied product data identifies its internal structure as full complement and its bearing material as high carbon steel.

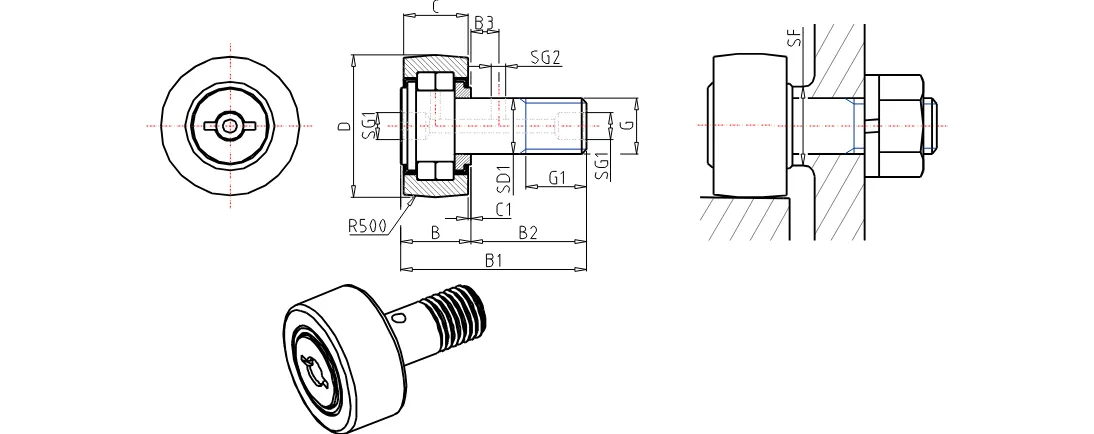

NUCF302R Dimensions and Installation Details
The product data lists the stud diameter as 30, outer diameter as 90, width as 35, and thread as M30x1.5. Additional supplied values include a length of 63.0, maximum width of 37.0, maximum total length of 100.0, and a minimum installation-related dimension of 45.
- Order number: NUCF30-2R
- Stud diameter: 30
- Outer diameter: 90
- Width: 35
- Thread: M30x1.5
- Maximum tightening torque: 438.0
What dimensions should be reviewed before installation?
Review the supplied stud diameter, outer diameter, width, thread specification, length values, maximum width, maximum total length, and the minimum installation-related dimension. Confirm these values against the intended assembly before use.
NUCF302R Load and Mass Specifications
The supplied data provides a basic dynamic load rating of 90300, a basic static load rating of 121000, and a maximum static allowable load of 98300. The listed mass is 1970. Additional dimensional entries include dimension 15, dimension 1.0, diameter 8, diameter 4, and length 32.
- Basic dynamic load rating: 90300
- Basic static load rating: 121000
- Maximum static allowable load: 98300
- Mass: 1970
What load and mass information is provided for this cam follower?
The product data includes basic dynamic and basic static load ratings, a maximum static allowable load, and a mass value. These figures should be used as listed, with compatibility checked against the required assembly specifications.
